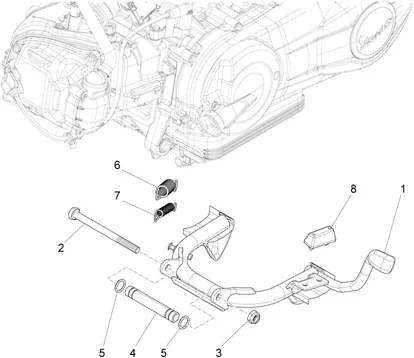

Vehicle Exploded View - VESPA VESPA LX 150 4T 3V IE 2012-2013 VESPA

Châssis - parties plastiques - carrosseries : 02.25 BÉQUILLE/S
Béquille/s
Search
CENTER STAND "PIAGGIO GENUINE PART" VESPA 125 LX 2012>, VESPA-S 2012> -5A000036-

1
P2R reference P2R reference 82725
Maker reference Maker reference 5A000036

CENTER STAND "PIAGGIO GENUINE PART" VESPA 125 LX 2012>, VESPA-S 2012> -5A000036-

More information

Quantity required : 1
SCREW - FOR CENTRAL STAND 10X130 "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -030115-

2
P2R reference P2R reference 65625
Maker reference Maker reference 0301155

SCREW - FOR CENTRAL STAND 10X130 "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -030115-

More information

Quantity required : 1
NUT - M10 "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -002440-

3
P2R reference P2R reference 63765
Maker reference Maker reference 0024405

NUT - M10 "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -002440-

More information

Quantity required : 1
SPACER- FOR STAND "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -582298-

4
P2R reference P2R reference 67251
Maker reference Maker reference 582298

SPACER- FOR STAND "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -582298-

More information

Quantity required : 1
STAND AXLE GASKET "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -273754-

5
P2R reference P2R reference 66127
Maker reference Maker reference 273754

STAND AXLE GASKET "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -273754-

More information

Quantity required : 2
SPRING - FOR CENTRAL STAND "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -581249-

6
P2R reference P2R reference 67209
Maker reference Maker reference 581249

SPRING - FOR CENTRAL STAND "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -581249-

More information

Quantity required : 1
SPRING - FOR STAND "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -581248-

7
P2R reference P2R reference 67208
Maker reference Maker reference 581248

SPRING - FOR STAND "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -581248-

More information

Quantity required : 1
CENTRAL STAND RUBBER PAD "PIAGGIO GENUINE PART" 50 VESPA LX 4 stroke, VESPA-S 4 stroke, ZIP 4 stroke, LIBERTY 4 stroke, 125 VESPA LX, VESPA -S, FLY, 400-500 BEVERLY -563984-

8
P2R reference P2R reference 67043
Maker reference Maker reference 563984

CENTRAL STAND RUBBER PAD "PIAGGIO GENUINE PART" 50 VESPA LX 4 STROKE, VESPA-S 4 STROKE, ZIP 4 STROKE, LIBERTY 4 STROKE, 125 VESPA LX, VESPA -S, FLY, 400-500 BEVERLY -563984-

More information

Quantity required : 1
