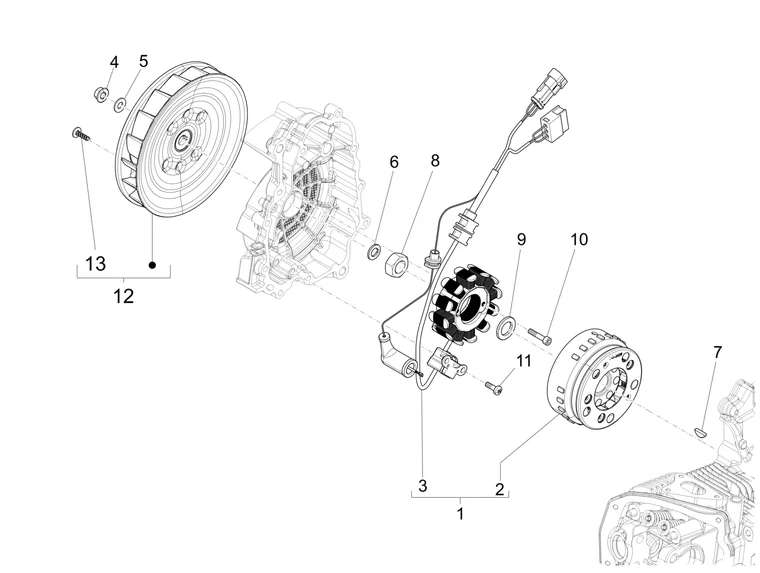

Moteur : 01.21 VOLANT MAGNETIQUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/548/Vespa_LX_125_4T_3V_IE_2012-2013_01.21.PNG)
1 |
680207 - VOLANT MAGNET. More informationQuantity required : 0 |
||||||
|
1 |
B018107 - VOLANT MAGNETIQUE More informationQuantity required : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/4/8/0/9/img/94809.jpg)
2 |
COMPLETE FREEWHEEL ROTOR "PIAGGIO GENUINE PART" 125 FLY, LIBERTY, VESPA GTS, VESPA LX, PRIMAVERA, SPRINT, VESPA-S (3 VALVES ENGINE AND IGET) -B018108- More informationQuantity required : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/2/1/6/3/img/92163.JPG)
3 |
680205 - STATOR More informationQuantity required : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/4/7/0/3/img/94703.JPG)
3 |
B016543 - STATOR More informationQuantity required : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/5/3/6/img/70536.jpg)
4 |
874557 - ECROU BRIDE More informationQuantity required : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/9/img/63779.jpg)
5 |
003058 - RONDELLE S00305800 More informationQuantity required : 0 |
||||||
|
6 |
B015807 - RONDELLE More informationQuantity required : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/2/1/img/63721.jpg)
7 |
WOODRUFF KEY "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -000267- More informationQuantity required : 0 |
||||||
|
8 |
841047 - ECROU More informationQuantity required : 0 |
||||||
|
9 |
B018464 - RONDELLE More informationQuantity required : 0 |
||||||
|
9 |
877703 - RONDELLE More informationQuantity required : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/1/6/8/img/127168.jpg)
10 |
1A003115 - VIS M5X25 More informationQuantity required : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/1/6/7/img/127167.JPG)
11 |
1A003109 - VIS M5X16 More informationQuantity required : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/5/3/5/0/img/75350.JPG)
12 |
1A001379 - VENTILATEUR More informationQuantity required : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/9/2/img/66092.jpg)
13 |
SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -270793- More informationQuantity required : 0 |
