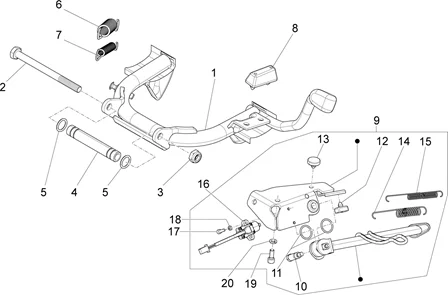

Vehicle Exploded View - VESPA VESPA LT 150 4T 3V IE 2014 VESPA

Châssis - parties plastiques - carrosseries : 02.25 BÉQUILLE/S
Béquille/s
Search
CENTER STAND "PIAGGIO GENUINE PART" VESPA 125 LX 2012>, VESPA-S 2012> -5A000036-

1
P2R reference P2R reference 82725
Maker reference Maker reference 5A000036

CENTER STAND "PIAGGIO GENUINE PART" VESPA 125 LX 2012>, VESPA-S 2012> -5A000036-

More information

Quantity required : 1
668187 - VIS

2
P2R reference P2R reference 90342
Maker reference Maker reference 668187

668187 - VIS

More information

Quantity required : 1
NUT - M10 "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -002440-

3
P2R reference P2R reference 63765
Maker reference Maker reference 0024405

NUT - M10 "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -002440-

More information

Quantity required : 1
SPACER- FOR STAND "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -582298-

4
P2R reference P2R reference 67251
Maker reference Maker reference 582298

SPACER- FOR STAND "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -582298-

More information

Quantity required : 1
STAND AXLE GASKET "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -273754-

5
P2R reference P2R reference 66127
Maker reference Maker reference 273754

STAND AXLE GASKET "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -273754-

More information

Quantity required : 2
SPRING - FOR CENTRAL STAND "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -581249-

6
P2R reference P2R reference 67209
Maker reference Maker reference 581249

SPRING - FOR CENTRAL STAND "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -581249-

More information

Quantity required : 1
SPRING - FOR STAND "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -581248-

7
P2R reference P2R reference 67208
Maker reference Maker reference 581248

SPRING - FOR STAND "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -581248-

More information

Quantity required : 1
CENTRAL STAND RUBBER PAD "PIAGGIO GENUINE PART" 50 VESPA LX 4 stroke, VESPA-S 4 stroke, ZIP 4 stroke, LIBERTY 4 stroke, 125 VESPA LX, VESPA -S, FLY, 400-500 BEVERLY -563984-

8
P2R reference P2R reference 67043
Maker reference Maker reference 563984

CENTRAL STAND RUBBER PAD "PIAGGIO GENUINE PART" 50 VESPA LX 4 STROKE, VESPA-S 4 STROKE, ZIP 4 STROKE, LIBERTY 4 STROKE, 125 VESPA LX, VESPA -S, FLY, 400-500 BEVERLY -563984-

More information

Quantity required : 1
666260 - BEQUILLE

9
P2R reference P2R reference 90004
Maker reference Maker reference 666260

666260 - BEQUILLE

More information

Quantity required : 1
665965 -

10
P2R reference P2R reference 89973
Maker reference Maker reference 665965

665965 -

More information

Quantity required : 1
SPACER- M23-M27 FOR SIDE STAND "PIAGGIO GENUINE PART" 400-500 MP3, BEVERLY, 400 X8, X-EVO, 500 X10, X9/GILERA 500 NEXUS, FUOCO, GP 800/APRILIA 400-500 ATLANTIC, SCARABEO, 850 SRV -191189-

11
P2R reference P2R reference 65812
Maker reference Maker reference 191189

SPACER- M23-M27 FOR SIDE STAND "PIAGGIO GENUINE PART" 400-500 MP3, BEVERLY, 400 X8, X-EVO, 500 X10, X9/GILERA 500 NEXUS, FUOCO, GP 800/APRILIA 400-500 ATLANTIC, SCARABEO, 850 SRV -191189-

More information

Quantity required : 2
CENTRAL STAND RUBBER PAD "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE SCOOTER + MAXISCOOTER -582885-

12
P2R reference P2R reference 67268
Maker reference Maker reference 582885

CENTRAL STAND RUBBER PAD "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE SCOOTER + MAXISCOOTER -582885-

More information

Quantity required : 1
666895 - TAMPON

13
P2R reference P2R reference 90106
Maker reference Maker reference 666895

666895 - TAMPON

More information

Quantity required : 1
SPRING - FOR CENTRAL STAND "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -295789-

14
P2R reference P2R reference 66287
Maker reference Maker reference 295789

SPRING - FOR CENTRAL STAND "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -295789-

More information

Quantity required : 1
SPRING - FOR STAND "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -295788-

15
P2R reference P2R reference 66286
Maker reference Maker reference 295788

SPRING - FOR STAND "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -295788-

More information

Quantity required : 1
SIDE STAND SWITCH "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -639542-

16
P2R reference P2R reference 67837
Maker reference Maker reference 639542

SIDE STAND SWITCH "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -639542-

More information

Quantity required : 1
292889 - VIS

17
P2R reference P2R reference 66257
Maker reference Maker reference 292889

292889 - VIS

More information

Quantity required : 2
WASHER (13,75x8,15x4,5) "PIAGGIO GENUINE PART" COMMUN A L'ENSEMBLE DE LA GAMME -016408-

18
P2R reference P2R reference 65418
Maker reference Maker reference 0164085

WASHER (13,75X8,15X4,5) "PIAGGIO GENUINE PART" COMMUN A L'ENSEMBLE DE LA GAMME -016408-

More information

Quantity required : 2
599009 - VIS

19
P2R reference P2R reference 82460
Maker reference Maker reference 599009

599009 - VIS

More information

Quantity required : 2
016405 - RONDELLE S01640500

20
P2R reference P2R reference 65415
Maker reference Maker reference 0164055

016405 - RONDELLE S01640500

More information

Quantity required : 2
