Vehicle Exploded View - VESPA VESPA GTV 310 E5+ ABS ASR Officina 8 2025 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

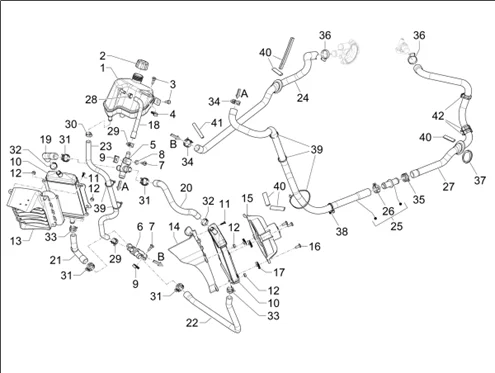

Châssis - parties plastiques - carrosseries : 02.55 INSTALATION DE REFOIDISSEMENT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1327/Vespa_GTV_310_E5_ABS_ASR_Officina_8_2025_EMEA_02.55.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/1/3/7/1/0/img/213710.JPG)
1 |
1B012355 - RÃ-SERVOIR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/7/4/3/img/67743.jpg)
2 |
COOLANT TANK CAP "PIAGGIO GENUINE PART" COMMON TO THE MAXISCOOTER RANGE -623673 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/6/4/img/73364.jpg)
3 |
SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM179201 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
4 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485 More informationQuantity required : 1 |
||||||
5 |
577195 - RACCORD More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/9/3/1/0/img/89310.jpg)
6 |
5 WAY CONNECTION (FOR COOLING) "PIAGGIO GENUINE PART" 125-250-300 VESPA GTS, GTV -656449 More informationQuantity required : 1 |
||||||
|
7 |
SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM179201 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/9/1/img/68491.jpg)
8 |
WASHER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -709047 More informationQuantity required : 1 |
||||||
|
9 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/1/1/3/0/img/81130.jpg)
10 |
COOLING RADIATOR "PIAGGIO GENUINE PART" 125-250-300 VESPA GTS -577183 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/6/2/8/0/img/96280.jpg)
11 |
SCREW - FOR PLASTIC BODY PARTS MOUNTING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE (4,2 X16) -CM178606 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/9/0/9/6/img/149096.jpg)
12 |
241936 - ECROU More informationQuantity required : 6 |
||||||
|
13 |
622839 - CANALISATION POUR AIR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/1/1/3/2/img/81132.jpg)
14 |
RADIATOR LEFT AIR INTAKE "PIAGGIO GENUINE PART" 125-250-300 VESPA GTS -577187 More informationQuantity required : 1 |
||||||
|
15 |
COOLING FAN "PIAGGIO GENUINE PARTS" VESPA 125-250 GTS, GTV -584669- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/6/6/img/73366.jpg)
16 |
CM179301 - VIS More informationQuantity required : 3 |
||||||
|
17 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485 More informationQuantity required : 3 |
||||||
|
18 |
1B003456 - TUBE More informationQuantity required : 1 |
||||||
|
19 |
1B003455 - TUBE More informationQuantity required : 1 |
||||||
|
20 |
1B003454 - TUBE More informationQuantity required : 1 |
||||||
|
21 |
577201 - TUYAU More informationQuantity required : 1 |
||||||
|
22 |
57313R - TUYAU More informationQuantity required : 1 |
||||||
|
23 |
57314R - TUYAU EAU RADIATEUR More informationQuantity required : 1 |
||||||
|
24 |
1B012073 - LOWER LINK - PUMP PIPE LINE More informationQuantity required : 1 |
||||||
|
25 |
1B010592 - TUYAU DE CONNEXION DE RACCORD SUPÃ-RIEU More informationQuantity required : 1 |
||||||
|
26 |
CM226915 - COLLIER A RESSORT More informationQuantity required : 1 |
||||||
|
27 |
653501 - TUYAU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/0/4/7/4/1/img/204741.jpg)
28 |
CM0019026 - COLLIER SERR. TUBE More informationQuantity required : 1 |
||||||
|
29 |
CM226913 - COLLIER A RESSORT More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/6/6/img/72866.jpg)
30 |
HOSE CLAMP "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM001904 More informationQuantity required : 1 |
||||||
|
31 |
CM226910 - COLLIER FBS 24/12 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/6/7/img/72867.jpg)
32 |
CM001905 - COLLIER More informationQuantity required : 2 |
||||||
|
33 |
CM226916 - COLLIER A RESSORT More informationQuantity required : 2 |
||||||
|
34 |
CM226911 - COLLIER FBS 26/12 More informationQuantity required : 2 |
||||||
|
35 |
CM226917 - COLLIER A RESSORT More informationQuantity required : 1 |
||||||
|
36 |
CM226909 - COLLIER More informationQuantity required : 2 |
||||||
|
37 |
1B001416 - PASSE-CABLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/5/9/3/img/127593.jpg)
38 |
1D001143 - COLLIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/4/2/img/65742.jpg)
39 |
LOCK STRAP (L180 MM) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -145298 More informationQuantity required : 5 |
||||||
|
40 |
CM077703 - PROTECTION More informationQuantity required : 5 |
||||||
|
41 |
583282 - JOINT PROTECT ARR FX More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/0/5/img/72905.jpg)
42 |
CM006903 - RESSORT More informationQuantity required : 3 |
