Vehicle Exploded View - VESPA VESPA GTV 300 SEI GIORNI ie E4 ABS 2017 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

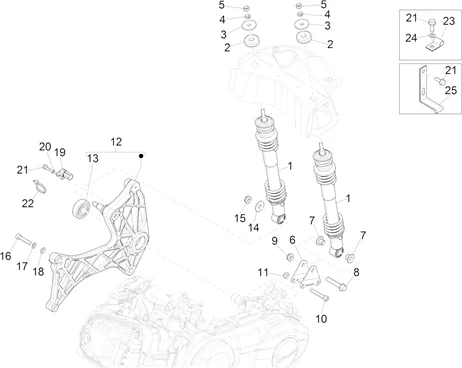

Suspensions - roues : 04.10 SUSPENSION ARRIÈRE - AMORTISSEUR/S
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/840/Vespa_GTV_300_SEI_GIORNI_ie_E4_ABS_2017_(EMEA)_04.10.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/0/1/9/5/img/170195.jpg)
1 |
REAR SHOCK ABSORBER "PIAGGIO GENUINE PART" 125-250 VESPA GTS 2006>, 300 VESPA GTS 2010> -1C004531R More informationQuantity required : 2 |
|||||||||
|
1 |
REAR SHOCK ABSORBER "PIAGGIO GENUINE PART" 125-250 VESPA GTS 2006>, 300 VESPA GTS 2010> -1C004531R More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/8/2/img/65782.jpg)
2 |
UPPER BUFFER FOR REAR SHOCK ABSORBER "PIAGGIO GENUINE PARTS" COMMON FOR SCOOTERS 50/125/250CC; -178150 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/5/7/img/66057.jpg)
3 |
REAR SHOCK ABSORBER WASHER "PIAGGIO GENUINE PART" 50 FLY, NRG, TYPHOON, ZIP, LIBERTY/ VESPA GT, GTS, PRIMAVERA ,LX ,S ,SPRINT -267038 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/8/img/65418.jpg)
4 |
WASHER (13,75X8,15X4,5) "PIAGGIO GENUINE PART" COMMUN A L'ENSEMBLE DE LA GAMME -016408 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/5/9/8/img/65598.jpg)
5 |
NUT - M8 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -021108 More informationQuantity required : 2 |
|||||||||
6 |
598143 - SUPPORT More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/2/2/3/7/img/82237.jpg)
7 |
597149 - BAGUE More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/6/9/img/66069.jpg)
8 |
SCREW - FOR REAR SHOCK ABSORBER"PIAGGIO GENUINE PARTS" FOR ALL THE RANGE -268158 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/6/5/img/63765.jpg)
9 |
NUT - M10 "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -002440 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/3/2/1/img/69321.jpg)
10 |
844483 - VIS More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/5/5/img/65455.jpg)
11 |
NUT - M8 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -020008 More informationQuantity required : 2 |
|||||||||
|
12 |
1A001903 - BRAS OSCILLANT More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/4/6/img/68546.jpg)
13 |
BEARING FOR REAR SUPENSION ARM "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -82545R More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/7/0/img/65370.jpg)
14 |
013962 - RONDELLE S01396200 More informationQuantity required : 1 |
|||||||||
|
15 |
NUT - M10 "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -002440 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/4/7/img/65747.jpg)
16 |
SCREW - (8X40) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -149104 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/9/1/img/68491.jpg)
17 |
WASHER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -709047 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/9/img/63779.jpg)
18 |
003058 - RONDELLE S00305800 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/0/6/6/8/img/120668.jpg)
19 |
SENSOR FOR REAR ABS "PIAGGIO GENUINE PART" 300-350-500 MP3 2015>, 125-300 VESPA GTS 2016>, PORTER E4 2010> -B000526 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/8/5/7/9/img/198579.jpg)
19 |
1D003828 - ABS SENSOR More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/0/5/3/8/img/90538.jpg)
20 |
669282 - RONDELLE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/4/4/5/img/139445.jpg)
21 |
SCREW - (5X16) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTORBIKE + MAXISCOOTER -B0167965 More informationQuantity required : 3 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/4/2/img/65742.jpg)
22 |
LOCK STRAP (L180 MM) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -145298 More informationQuantity required : 1 |
|||||||||
|
23 |
643413 - COLLIER More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/4/0/img/63840.jpg)
24 |
006975 - RONDELLE S00697500 More informationQuantity required : 1 |
|||||||||
|
25 |
9004461229000 - COLLIER More informationQuantity required : 1 |
|||||||||
