Vehicle Exploded View - VESPA VESPA GT 125 Vespa GTV 125 4T E3 2006
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

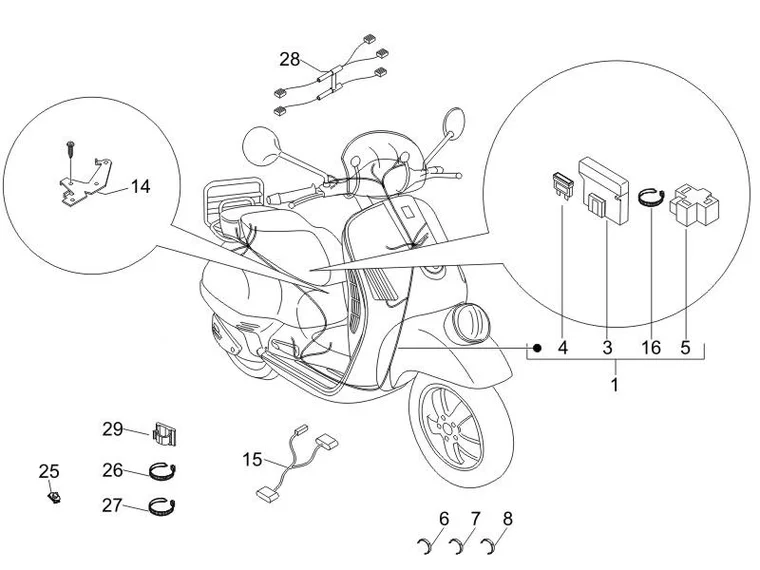

Installation électrique : 06.08 FAISCEAU DE CÂBLES PRINCIPAL
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/208/Vespa_GTV_125_4T_E3_2006_06.08.PNG)
1 |
639972 - FAISC. DE CABLES More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/8/1/img/67181.jpg)
3 |
580653 - PORTE-FUSIBLES More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/4/img/66004.jpg)
4 |
252945 - FUSIBLE 7,5A More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/4/4/img/66244.jpg)
4 |
FUSE 15 AMP "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -290860- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/5/4/img/66254.jpg)
4 |
292507 - FUSIBLE 10A More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/6/2/img/66262.JPG)
4 |
293256 - FUSIBLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/0/4/img/72904.jpg)
6 |
CM006902 - COLLIER More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/0/7/img/72907.JPG)
7 |
CM006905 - RESSOT More informationQuantity required : 1 |
||||||
|
8 |
CM006907 - RESSOT More informationQuantity required : 2 |
||||||
|
14 |
624998 - SUPPORT More informationQuantity required : 1 |
||||||
|
15 |
640025 - GROUPE CABLES More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/4/2/img/65742.jpg)
16 |
LOCK STRAP (L180 MM) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -145298- More informationQuantity required : 1 |
||||||
|
16 |
271451 - COLLIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/3/9/img/65739.JPG)
25 |
140435 - RESSORT More informationQuantity required : 1 |
||||||
|
26 |
LOCK STRAP (L180 MM) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -145298- More informationQuantity required : 19 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/1/7/img/66017.jpg)
27 |
257134 - COLLIER More informationQuantity required : 3 |
||||||
|
28 |
640352 - FAISCEAU CABLES More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/6/1/img/67161.jpg)
29 |
577594 - COLLIER AUTOADHESIVE More informationQuantity required : 1 |
