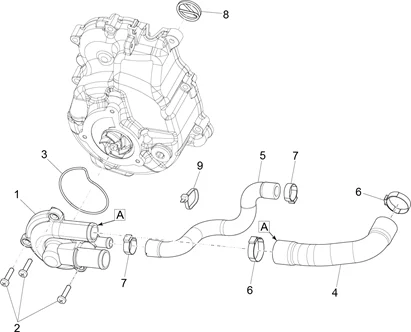

Vehicle Exploded View - VESPA VESPA GTS 300 Super HPE 4V ie ABS E4 2018-2020 VESPA

Moteur : 01.19 POMPE À EAU
Pompe à eau
Search
WATER PUMP COVER (3 HOSES) "PIAGGIO GENUINE PART" 125-250-300 MP3, X7, 125-250 X9, X-EVO, BEVERLY, VESPA GTS/GILERA 125-250-300 NEXUS/APRILIA 125-250-300 ATLANTIC (COMPATIBLE WITH 8482585) -877528 -

1
P2R reference P2R reference 70666
Maker reference Maker reference 877528

WATER PUMP COVER (3 HOSES) "PIAGGIO GENUINE PART" 125-250-300 MP3, X7, 125-250 X9, X-EVO, BEVERLY, VESPA GTS/GILERA 125-250-300 NEXUS/APRILIA 125-250-300 ATLANTIC (COMPATIBLE WITH 8482585) -877528 -

More information

Quantity required : 1
SCREW - (5x22) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -828662-

2
P2R reference P2R reference 68770
Maker reference Maker reference 828662

SCREW - (5X22) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -828662-

More information

Quantity required : 3
O'RING GASKET FOR WATER PUMP "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 125-250-300 -485080-

3
P2R reference P2R reference 66671
Maker reference Maker reference 485080

O'RING GASKET FOR WATER PUMP "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 125-250-300 -485080-

More information

Quantity required : 1
878626 - TUYAU

4
P2R reference P2R reference 70686
Maker reference Maker reference 878626

878626 - TUYAU

More information

Quantity required : 1
COOLANT HOSE "PIAGGIO GENUINE PART" (FROM WATER PUMP to CALORSTAT) PIAGGIO 125-250-300 MAXISCOOTER -878940-

5
P2R reference P2R reference 70701
Maker reference Maker reference 878940

COOLANT HOSE "PIAGGIO GENUINE PART" (FROM WATER PUMP TO CALORSTAT) PIAGGIO 125-250-300 MAXISCOOTER -878940-

More information

Quantity required : 1
COOLANT HOSE CLAMP "PIAGGIO GENUINE PART" COMMON FOR ALL MAXISCOOTERS 125-250-300 -CM001922-

6
P2R reference P2R reference 72881
Maker reference Maker reference CM001922

COOLANT HOSE CLAMP "PIAGGIO GENUINE PART" COMMON FOR ALL MAXISCOOTERS 125-250-300 -CM001922-

More information

Quantity required : 2
HOSE CLAMP "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM001904-

7
P2R reference P2R reference 72866
Maker reference Maker reference CM001904

HOSE CLAMP "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM001904-

More information

Quantity required : 2
WATER PUMP DRIVE SPRING "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 125-250-300 -842390-

8
P2R reference P2R reference 69231
Maker reference Maker reference 842390

WATER PUMP DRIVE SPRING "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 125-250-300 -842390-

More information

Quantity required : 1
LOCK STRAP (L180 MM) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -145298-

9
P2R reference P2R reference 65742
Maker reference Maker reference 145298

LOCK STRAP (L180 MM) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -145298-

More information

Quantity required : 1
