Vehicle Exploded View - VESPA VESPA GTS 300 Super 4T 4V ie ABS E4 2016-2018
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

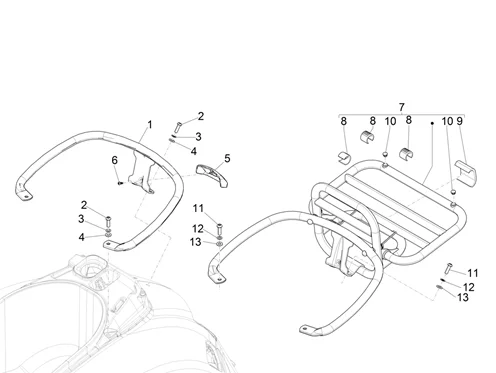

Châssis - parties plastiques - carrosseries : 02.44 PORTE-BAGAGES ARRIÈRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/802/Vespa_GTS_300_Super_4T_4V_ie_ABS_E4_2016-2018_02.44.png)
1 |
PASSENGER HANDLE "PIAGGIO GENUINE PART" 125-250-300 VESPA GTS -1B000654- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/3/2/2/0/img/153220.jpg)
1 |
PASSENGER HANDLE ( NOTTE MODEL) "PIAGGIO GENUINE PART" 125-250-300 VESPA GTS -1B005711- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/7/4/9/img/67749.jpg)
2 |
SCREW - "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -623920- More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/4/5/img/65345.jpg)
3 |
012533 - RONDELLE More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/6/2/img/65362.jpg)
4 |
013777 - RONDELLE S01377700 More informationQuantity required : 4 |
||||||
|
5 |
623336 - COUVERCLE SELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/3/2/2/1/img/153221.JPG)
5 |
CM2981025 - COUVERCLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/7/4/img/66074.jpg)
6 |
268596 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/9/0/0/img/139900.jpg)
7 |
REAR LUGGAGE RACK "PIAGGIO GENUINE PART" 125-250-300 VESPA GTS 2007>2016 -1B002106- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/4/6/2/4/img/84624.jpg)
8 |
622554 - TAMPON More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/4/8/5/8/img/84858.JPG)
9 |
623576 - SUPPORT More informationQuantity required : 1 |
||||||
|
10 |
623561 - BOUCHON POIGNEE SELLE More informationQuantity required : 2 |
||||||
|
11 |
SCREW - "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -623920- More informationQuantity required : 4 |
||||||
|
12 |
012533 - RONDELLE More informationQuantity required : 4 |
||||||
|
13 |
013777 - RONDELLE S01377700 More informationQuantity required : 4 |
