Vehicle Exploded View - VESPA VESPA GTS 300 ie Touring 2011-2012
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

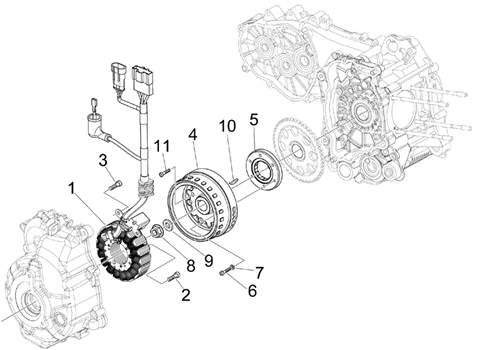

Moteur : 01.21 VOLANT MAGNETIQUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/217/Vespa_GTS_300_ie_Touring_2011-2012_01.21.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/4/8/img/67248.jpg)
1 |
IGNITION STATOR "PIAGGIO GENUINE PART" 125-300 MP3, BEVERLY INJECTION, 125-250-300 VESPA GTS INJECTION, 300 X7/APRILIA 300 ATLANTIC -642054- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/4/7/img/67347.jpg)
2 |
597564 - VIS More informationQuantity required : 3 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/4/3/img/65443.jpg)
3 |
018575 - VIS More informationQuantity required : 2 |
|||||||||
4 |
873034 - ROTOR More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/9/1/5/3/img/149153.jpg)
5 |
STARTER FREEWHEEL (6 HOLES) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 300-350-400-500 -1A0093875- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/6/1/9/0/img/146190.jpg)
5 |
STARTER FREEWHEEL "PIAGGIO GENUINE PART" APRILIA 1000 TUONO, RSV-4/PIAGGIO 125-350-500 BEVERLY, 400 X8, 125-300 VESPA GTS/GILERA 500 NEXUS -1A008691- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/6/5/6/img/70656.jpg)
6 |
877289 - VIS More informationQuantity required : 6 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/7/9/img/66579.JPG)
7 |
479515 - RONDELLE More informationQuantity required : 6 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/5/3/img/68853.jpg)
8 |
NUT - FOR IGNITION ROTOR "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MAXISCOOTER 125-250-300 -82952R- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/2/2/9/img/69229.JPG)
9 |
842385 - RONDELLE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/7/4/img/63674.jpg)
10 |
WOODRUFF KEY "PIAGGIO GENUINE PART" COMMON TO ALL MAXISCOOTER -000097- More informationQuantity required : 1 |
|||||||||
|
11 |
018575 - VIS More informationQuantity required : 2 |
|||||||||
