Vehicle Exploded View - VESPA VESPA GTS 250 ABS 2005-2009
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

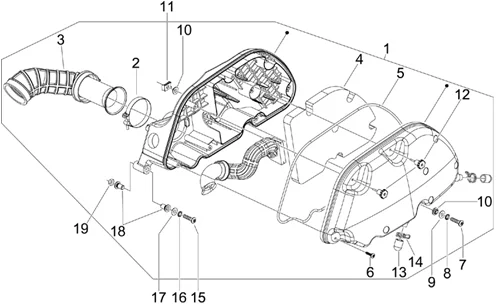

Moteur : 01.45 FILTRE À AIR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/214/Vespa_GTS_250_ABS_2005-2009_01.45.PNG)
1 |
B018040 - BOX PURIFICATEUR More informationQuantity required : 1 |
|||||||||
|
1 |
1A011016 - BOITIER DU FILTRE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/4/6/img/66046.JPG)
2 |
260918 - BRIDE More informationQuantity required : 1 |
|||||||||
|
3 |
1A007660 - MANCHON More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/7/0/7/4/img/157074.jpg)
4 |
AIR FILTER"PIAGGIO GENUINE PART" PREMIUM - 125 X-EVO 2007>, MP3 2006>, VESPA GT 2004>, VESPA GTS 2007>, X8 2004>, 125 X9-EVO 2007>, 250 MP3 2006>, 300 MP3 2010> -8319970P- More informationQuantity required : 1 |
|||||||||
|
5 |
831995 - JOINT More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/2/5/img/66025.jpg)
6 |
SCREW - 3X20 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -258146- More informationQuantity required : 6 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/4/8/img/65448.jpg)
7 |
SCREW - (6X50 AIR FILTER FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -018640- More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/4/5/img/65345.jpg)
8 |
012533 - RONDELLE More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/7/img/63777.jpg)
9 |
003056 - RONDELLE More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/8/8/img/68888.jpg)
10 |
830056 - BAGUE More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
11 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485- More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/7/3/img/66573.jpg)
12 |
479132 - BOUTON More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/0/1/img/68701.jpg)
13 |
CAP - FOR AIRBOX "PIAGGIO GENUINE PART" COMMON TO ALL SCOOTER / MAXISCOOTER 4 STROKE -827831- More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/9/5/img/72895.jpg)
14 |
COOLANT HOSE CLAMP "PIAGGIO GENUINE PART" COMMON FOR ALL MAXISCOOTERS 125-250-300 -CM002910- More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/3/3/img/66033.JPG)
15 |
259166 - VIS More informationQuantity required : 1 |
|||||||||
|
16 |
012533 - RONDELLE More informationQuantity required : 1 |
|||||||||
|
17 |
003056 - RONDELLE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/8/9/img/68889.jpg)
18 |
830057 - BAGUE More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/8/7/img/66187.jpg)
19 |
NUT - FOR EXHAUST "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -288245- More informationQuantity required : 1 |
|||||||||
