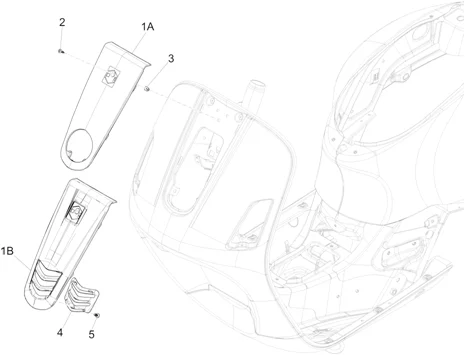

Châssis - parties plastiques - carrosseries : 02.26 TABLIER AVANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/212/Vespa_GTS_250_2005-2014_02.26.PNG)
1 |
1B000885000XN2 - CACHE DIRECTION More informationQuantity required : 1 |
||||||
|
1 |
STEERING COVER- "PIAGGIO GENUINE PART" 125-250-300 VESPA GTS YELLOW 928/A -62114350GP- More informationQuantity required : 1 |
||||||
|
1 |
62114350GV - CACHE DIRECTION More informationQuantity required : 1 |
||||||
|
1 |
62114350M5 - CACHE DIRECTION More informationQuantity required : 1 |
||||||
|
1 |
STEERING COVER- "PIAGGIO GENUINE PART" 125-250-300 VESPA GTS RED 894 -62114350R7- More informationQuantity required : 1 |
||||||
|
1 |
STEERING COVER- "PIAGGIO GENUINE PART" 125-250-300 VESPA GTS RED 820/A -62114350RI- More informationQuantity required : 1 |
||||||
|
1 |
1B000885 - CACHE DIRECTION More informationQuantity required : 1 |
||||||
|
1 |
1B000885000DE - CACHE DIRECTION More informationQuantity required : 1 |
||||||
|
1 |
1B000885000HA - CACHE DIRECTION More informationQuantity required : 1 |
||||||
|
1 |
62114340DI - CACHE DIRECTION More informationQuantity required : 1 |
||||||
|
1 |
STEERING COVER- "PIAGGIO GENUINE PART" 125-250-300 VESPA GTS BLUE 222/A -62114340DE- More informationQuantity required : 1 |
||||||
|
1 |
62114340BR - CACHE DIRECTION More informationQuantity required : 1 |
||||||
|
1 |
621143 - CACHE DIRECTION More informationQuantity required : 1 |
||||||
|
1 |
6211434090 - CACHE-DIRECTION More informationQuantity required : 1 |
||||||
|
1 |
STEERING COVER- "PIAGGIO GENUINE PART" 125-250 VESPA GTS 2005>2016 GREY 738 -62114360F2- More informationQuantity required : 1 |
||||||
|
1 |
62114340XN2 - CACHE DIRECTION More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/6/2/8/8/img/96288.jpg)
2 |
CM179101 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/6/8/img/66068.jpg)
2 |
SCREW - 20 MM "PIAGGIO GENUINE PART" COMMON TO THE RANGE -267958- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/0/1/9/img/109019.jpg)
3 |
EXPANSION PLUG "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -157716- More informationQuantity required : 1 |
||||||
|
4 |
1B000954 - GRILLE CACHE DIRECTION AV More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/5/4/img/63854.jpg)
5 |
SCREW - -008432- More informationQuantity required : 1 |
