Vehicle Exploded View - VESPA VESPA GTS 125 Super 4T ABS E4 2016-2018 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

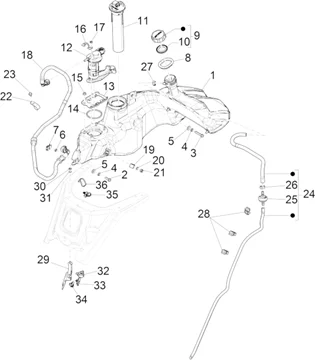

Châssis - parties plastiques - carrosseries : 02.47 RESERVOIR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1222/Vespa_GTS_125_Super_4T_ABS_E4_2016-2018_(EMEA)_02.47.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/6/3/4/6/img/146346.jpg)
1 |
1B003312 - RESERVOIR CARBURANT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/4/7/img/65447.jpg)
2 |
018639 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/6/7/img/66367.jpg)
3 |
SCREW - FOR CRANKCASE "PIAGGIO GENUINE PART" COMMON TO THE RANGE -414838 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/6/img/65416.jpg)
4 |
016406 - RONDELLE S01640600 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/6/6/img/65366.jpg)
5 |
013880 - RONDELLE More informationQuantity required : 3 |
||||||
6 |
623162 - ENTRETOISE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
7 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485 More informationQuantity required : 2 |
||||||
|
8 |
1B004806 - JOINT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/6/3/2/img/67632.jpg)
8 |
GASKET FOR COOLANT TANK CAP "PIAGGIO GENUINE PART" PIAGGIO 125-250-400 BEVERLY, X-EVO, X8, 50-125 VESPA PRIMAVERA, SPRINT, 50 ZIP, NRG/GILERA 125-250-300 NEXUS, X-MAX -620737 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/3/0/8/img/68308.jpg)
9 |
FUEL CAP "PIAGGIO GENUINE PART" COMMON TO THE MAXISCOOTER RANGE -656022 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/3/0/7/img/68307.jpg)
10 |
656021 - JOINT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/6/6/7/1/img/146671.jpg)
11 |
CM025723 - JAUGE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/4/6/img/72946.jpg)
11 |
FUEL LEVEL GAUGE "PIAGGIO GENUINE PART" 125-250-300 BEVERLY, 50-125 FLY, 125 VESPA GTS -CM025706 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/6/4/8/7/img/86487.jpg)
12 |
642888 - RUBBER BRACKET FOR BLINKER More informationQuantity required : 1 |
||||||
|
13 |
1B003873 - BRIDE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/9/1/8/img/139918.jpg)
14 |
1B002841 - JOINT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/8/4/img/65984.jpg)
15 |
241937 - ECROU More informationQuantity required : 4 |
||||||
|
16 |
1B004048 - EQUERRE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/0/8/4/img/111084.jpg)
17 |
NUT - "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTERS AND APE -804457 More informationQuantity required : 2 |
||||||
|
18 |
1B003568R - TUYAU CARBURANT More informationQuantity required : 1 |
||||||
|
19 |
1B001615 - COLLIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/4/5/img/65345.jpg)
20 |
012533 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/4/3/6/img/111436.jpg)
21 |
012138 - ECROU S01213800 More informationQuantity required : 1 |
||||||
|
22 |
1B004489 - PLAQUETTE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/9/5/9/img/70959.jpg)
23 |
969296 - BOULON More informationQuantity required : 1 |
||||||
|
24 |
1B001467 - TUYAU RENIFLARD RADIATEUR More informationQuantity required : 1 |
||||||
|
25 |
576748 - VOLET More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/7/5/img/72875.jpg)
26 |
CM001914 - COLLIER More informationQuantity required : 1 |
||||||
|
27 |
CM001914 - COLLIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/1/7/img/72917.jpg)
28 |
CM013201 - RESSORT More informationQuantity required : 3 |
||||||
|
29 |
1B003527 - SUPPORT More informationQuantity required : 1 |
||||||
|
30 |
NUT - "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTERS AND APE -804457 More informationQuantity required : 2 |
||||||
|
31 |
003055 - RONDELLE More informationQuantity required : 2 |
||||||
|
32 |
CM006911 - RESSORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/6/2/1/2/img/86212.jpg)
33 |
641599 - RESSOT More informationQuantity required : 1 |
||||||
|
34 |
1D000129 - JOINT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/5/9/3/img/127593.jpg)
35 |
1D001143 - COLLIER More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/1/7/img/66017.jpg)
36 |
257134 - COLLIER More informationQuantity required : 1 |
