Vehicle Exploded View - VESPA VESPA ET4 125 Leader 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

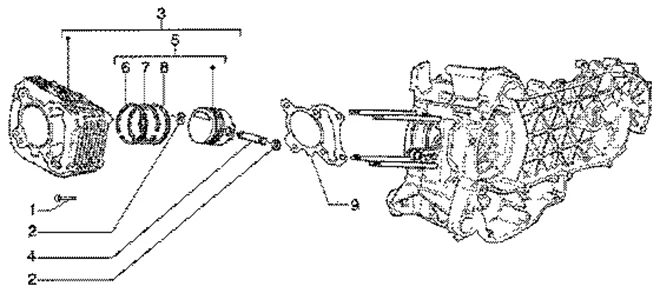

Moteur : T4 ENSEMBLE CYLINDRE-PISTON-AXE DE PISTON
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/711/Vespa_ET4_125_Leader_1998-2005_T4.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/8/2/img/66682.JPG)
1 |
485603 - BOULON More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/9/2/2/img/70922.jpg)
2 |
STOP RING FOR PISTON "PIAGGIO GENUINE PART"- LEADER ENGINE 125-250 -963486- More informationQuantity required : 2 |
||||||
3 |
CYLINDER/PISTON ASSEMBLY "PIAGGIO GENUINE PART" 125 FLY, LIBERTY, VESPA LX, X8 STREET/APRILIA 125 MOJITO, SR, SPORT-CITY -831975- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/1/5/img/66615.jpg)
4 |
PISTON PIN "PIAGGIO GENUINE PART" 125 MP3 2006>2013, X10 2012>2015/ VESPA GTS 2007>2016, VESPA LX 2006>2011 -482335 More informationQuantity required : 1 |
||||||
|
5 |
8271120004 - GR PISTON More informationQuantity required : 1 |
||||||
|
5 |
8271120003 - GR PISTON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/6/4/8/img/68648.JPG)
5 |
8271120002 - GR PISTON More informationQuantity required : 1 |
||||||
|
5 |
827106 - ENS PIST.-AXE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/6/4/7/img/68647.jpg)
5 |
PISTON "PIAGGIO GENUINE PART" 125 FLY, LIBERTY, VESPA LX, VESPA-S -8271120001- More informationQuantity required : 1 |
||||||
|
6 |
487994 - SEGMENT SUP 1/MAJ More informationQuantity required : 1 |
||||||
|
6 |
487998 - SEGMENT SUP 2/MAJ More informationQuantity required : 1 |
||||||
|
6 |
488002 - SEGMENT 3M More informationQuantity required : 1 |
||||||
|
6 |
485958 - SEGMENT SUP 3/MAJ More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/9/2/img/66692.jpg)
6 |
PISTON COMPRESSION RING- "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 125 CC -485779- More informationQuantity required : 1 |
||||||
|
7 |
488003 - SEGMENT RACLEUR D'HUILE 3M More informationQuantity required : 1 |
||||||
|
7 |
487999 - SEGMENT INF 2/MAJ More informationQuantity required : 1 |
||||||
|
7 |
487995 - SEGMENT INF 1/MAJ More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/9/7/img/66697.jpg)
7 |
OIL SCRAPER PISTON RING- "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 125 CC -485914- More informationQuantity required : 1 |
||||||
|
8 |
825029 - SEGMENT 2M More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/7/1/3/img/66713.jpg)
8 |
OIL SCRAPER PISTON RING- "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 125 CC -486362- More informationQuantity required : 1 |
||||||
|
8 |
485959 - SEGMENT 3M More informationQuantity required : 1 |
||||||
|
8 |
487996 - SEGMENT 1M More informationQuantity required : 1 |
||||||
|
9 |
485579 - JOINT More informationQuantity required : 1 |
||||||
|
9 |
485520 - JOINT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/5/7/4/img/70574.jpg)
9 |
CYLINDER BASE GASKET (0,04MM) "PIAGGIO GENUINE PART" COMMON TO THE RANGE 125-250-300 -875112- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/5/7/6/img/70576.jpg)
9 |
CYLINDER BASE GASKET(0,08MM) "PIAGGIO GENUINE PART" COMMON TO THE RANGE 125-250-300 -875114- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/5/7/5/img/70575.jpg)
9 |
CYLINDER BASE GASKET (0,06MM) "PIAGGIO GENUINE PART" COMMON TO THE RANGE 125-250-300 -875113- More informationQuantity required : 1 |
||||||
|
9 |
485580 - JOINT More informationQuantity required : 1 |
