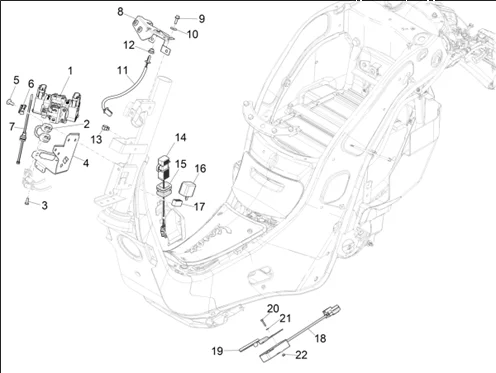

Vehicle Exploded View - VESPA VESPA 50 Vespa Elettrica 45 Km-h E5 2021 (EMEA)

	P2R reference	72848
	Maker reference	B044414

THROTTLE POSITION SENSOR "PIAGGIO GENUINE PART" APRILIA DORSODURO, SHIVER, TUONO, RSV-4/MOTO-GUZZI CALIFORNIA, AUDACE, ELDORADO -B044414

	P2R reference	39887
	Maker reference	854811

854811 - JOINT

	P2R reference	71897
	Maker reference	AP8150509

AP8150509 - VIS TARAUD 5X14

	P2R reference	155373
	Maker reference	1B004644

1B004644 - SUPP. SOUP.

	P2R reference	73366
	Maker reference	CM179301

CM179301 - VIS

	P2R reference	66009
	Maker reference	254485

SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485-

	P2R reference	155374
	Maker reference	1D002511

1D002511 - COLLIER

	P2R reference	151374
	Maker reference	1B005388

1B005388 - PATTE

	P2R reference	68890
	Maker reference	830061

830061 - VIS

	P2R reference	65421
	Maker reference	0166035

016603 - RONDELLE S01660300

	P2R reference	178707
	Maker reference	1D003720R

1D003720R - ROOM TEMPERATURE SENSOR

	P2R reference	178707
	Maker reference	581142

1D003720R - ROOM TEMPERATURE SENSOR

	P2R reference	151373
	Maker reference	1B005386

1B005386 - PASSE-CABLE

	P2R reference	65967
	Maker reference	231590

231590 - CLIPS

	P2R reference	157798
	Maker reference	1D003323

1D002753 - PRISE USB

	P2R reference	75897
	Maker reference	1B001591

1B001591 - PASSE CABLES

	P2R reference	92168
	Maker reference	680228

680228 - CENTALE CLIGNOTANTE

	P2R reference	86361
	Maker reference	642317

642317 - SOUTIEN DES INDICATEURS DE DIRECTION

	P2R reference	146204
	Maker reference	2D000305

2D000305 - CENTRALE ELECTRONIQUE

	P2R reference	151375
	Maker reference	1B005401

1B005401 - PATTE

	P2R reference	110679
	Maker reference	615795

615795 - VIS

	P2R reference	65363
	Maker reference	0138365

013836 - RONDELLE S01383600

	P2R reference	110653
	Maker reference	B005195

B005195 - ECROU
