Vehicle Exploded View - VESPA VESPA LX 50 Vespa Elettrica 2018 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

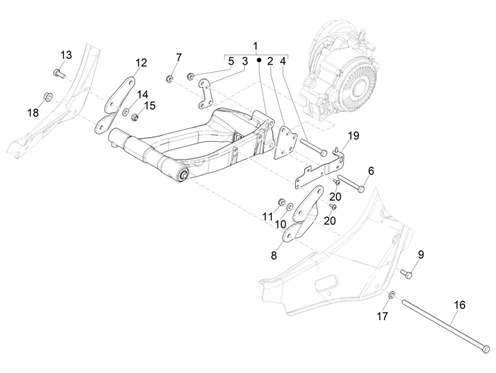

Suspensions - roues : 04.01 BRAS OSCILLANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/824/Vespa_Elettrica_2018_(EMEA)_04.01.png)
1 |
1C0032435 - FOURCHE AR. COMPLETE More informationQuantity required : 2 |
||||||
|
2 |
1C003245 - PLAQUE G. More informationQuantity required : 1 |
||||||
|
3 |
1C003244 - PLAQUE D. More informationQuantity required : 1 |
||||||
|
4 |
560045 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/6/5/img/63765.jpg)
5 |
NUT - M10 "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -002440- More informationQuantity required : 2 |
||||||
|
6 |
560045 - VIS More informationQuantity required : 2 |
||||||
|
7 |
NUT - M10 "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -002440- More informationQuantity required : 2 |
||||||
|
8 |
1B004703 - SUPPORT G. More informationQuantity required : 1 |
||||||
|
9 |
1C000608 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/8/9/img/65789.jpg)
10 |
178790 - RONDELLE More informationQuantity required : 1 |
||||||
|
11 |
NUT - M10 "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -002440- More informationQuantity required : 1 |
||||||
|
12 |
1B004704 - SUPPORT D. More informationQuantity required : 1 |
||||||
|
13 |
1C000608 - VIS More informationQuantity required : 1 |
||||||
|
14 |
178790 - RONDELLE More informationQuantity required : 1 |
||||||
|
15 |
NUT - M10 "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -002440- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/2/3/1/9/img/82319.jpg)
16 |
SCREW - FOR SWING ARM "PIAGGIO GENUINE PARTS" 50-125 VESPA LX, PRIMAVERA, SPRINT, VESPA-S, 125-250-300 VESPA GTS -597914- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/7/1/4/6/img/77146.JPG)
17 |
266845 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/0/3/img/66103.jpg)
18 |
NUT - FOR WHEEL AXLE "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -271740- More informationQuantity required : 1 |
||||||
|
19 |
1B005540 - BRIDE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/6/6/img/73366.JPG)
20 |
CM179301 - VIS More informationQuantity required : 2 |
