Vehicle Exploded View - VESPA VESPA PRIMAVERA 50 Vespa Elettrica 2018 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

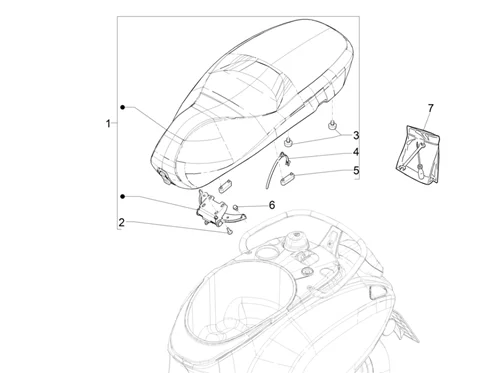

Châssis - parties plastiques - carrosseries : 02.39 SELLE/SIEGES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/824/Vespa_Elettrica_2018_(EMEA)_02.39.png)
1 |
1B004642000C6 - SELLE More informationQuantity required : 1 |
||||||
|
1 |
1B004642000C1 - SELLE More informationQuantity required : 1 |
||||||
|
1 |
1B004642000C7 - SELLE More informationQuantity required : 1 |
||||||
|
1 |
1B004642000C3 - SELLE More informationQuantity required : 1 |
||||||
|
1 |
1B004642000C4 - SELLE More informationQuantity required : 1 |
||||||
|
1 |
1B004642000C5 - SELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/6/7/img/73367.jpg)
2 |
CM179302 - VIS More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/5/7/img/67157.jpg)
3 |
SADDLE PAD "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -577492- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/0/7/img/66307.jpg)
4 |
298729 - COLLIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/9/2/img/66292.jpg)
5 |
296456 - TAMPON More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/0/6/img/72706.jpg)
6 |
B016426 - VIS TEF M6X14 More informationQuantity required : 4 |
||||||
|
7 |
1C000590 - TROUSSE OUTILS More informationQuantity required : 1 |
