Vehicle Exploded View - VESPA VESPA PRIMAVERA 125 Vespa 125 4T 3V ie Primavera 2013-2014
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

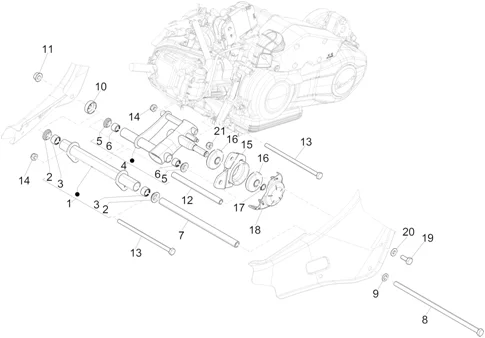

Suspensions - roues : 04.01 BRAS OSCILLANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/205/Vespa_125_4T_3V_ie_Primavera_2013-2014_04.01.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/0/4/0/7/img/140407.jpg)
1 |
SWINGING ARM - ON FRAME SIDE "PIAGGIO GENUINE PART" 125 VESPA PRIMAVERA, SPRINT -5A000483- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/2/4/5/5/img/82455.jpg)
2 |
598917 - JOINT More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/4/1/6/img/67416.jpg)
3 |
ROLLER BEARING FOR SWINGING ARM "PIAGGIO GENUINE PART" 125-250-300 VESPA GTS, 125 VESPA SPRINT, PRIMAVERA, 500 X9, BEVERLY -600161- More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/6/0/0/8/img/76008.jpg)
4 |
SWINGING ARM - ON ENGINE SIDE "PIAGGIO GENUINE PART" 125 VESPA PRIMAVERA, SPRINT -1C000503- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/3/5/img/67335.jpg)
5 |
GASKET FOR SWINGING ARM "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER /MAXISCOOTER -597317- More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/0/0/4/img/67004.jpg)
6 |
ROLLER BEARING FOR SWINGING ARM "PIAGGIO GENUINE PART" FOR ALL SCOOTERS 125-250-300 -56127R- More informationQuantity required : 2 |
|||||||||
7 |
1C000439 - ENTRETOISE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/2/3/1/9/img/82319.jpg)
8 |
SCREW - FOR SWING ARM "PIAGGIO GENUINE PARTS" 50-125 VESPA LX, PRIMAVERA, SPRINT, VESPA-S, 125-250-300 VESPA GTS -597914- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/7/1/4/6/img/77146.JPG)
9 |
266845 - RONDELLE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/6/0/0/3/img/76003.jpg)
10 |
1C000449 - More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/0/3/img/66103.jpg)
11 |
NUT - FOR WHEEL AXLE "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -271740- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/6/0/0/2/img/76002.JPG)
12 |
1C000440 - ENTRETOISE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/0/6/img/66106.jpg)
13 |
SCREW - FOR SUSPENSION ARM (10X202) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 125-250-300 CC -271807- More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/6/5/img/63765.jpg)
14 |
NUT - M10 "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -002440- More informationQuantity required : 2 |
|||||||||
|
15 |
1C0005025 - SUPPORT More informationQuantity required : 1 |
|||||||||
|
16 |
668514 - SILENBLOC More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/9/2/8/2/img/149282.JPG)
16 |
1C002624 - SILENBLOC More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/1/4/img/63814.jpg)
17 |
CIRCLIPS "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -006416- More informationQuantity required : 1 |
|||||||||
|
18 |
1C000421 - COUVERCLE More informationQuantity required : 1 |
|||||||||
|
19 |
1C000608 - VIS More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/8/9/img/65789.jpg)
20 |
178790 - RONDELLE More informationQuantity required : 1 |
|||||||||
|
21 |
NUT - M10 "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -002440- More informationQuantity required : 1 |
|||||||||
