Vehicle Exploded View - DERBI VARIANT SPORT 50 Variant Sport 50 2T 2012 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

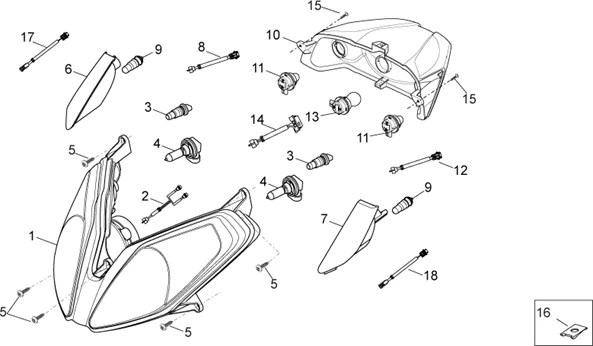

Cadre : 28.27 FEUX
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1067/Variant_Sport_50_2T_2012_(EMEA)_28.27.png)
1 |
642117 - PROJECTEUR More informationQuantity required : 1 |
||||||
|
2 |
890205 - CABLAGE FEU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/4/0/8/img/139408.jpg)
3 |
LIGHT BULB 12V 5W "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -2920225 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/3/8/1/img/64381.jpg)
4 |
LIGHT BULB H8 12V-35W "PIAGGIO GENUINE PART" 50 TYPHOON 2011>/APRILIA 50 SR MOTARD, RS 50, SPORT-CITY -00H01004131 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/6/2/8/0/img/96280.jpg)
5 |
SCREW - FOR PLASTIC BODY PARTS MOUNTING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE (4,2 X16) -CM178606 More informationQuantity required : 5 |
||||||
|
6 |
642114 - CLIGNOTANT AV DROITE More informationQuantity required : 1 |
||||||
|
7 |
642115 - CLIGNOTANT AVANT GAUCHE More informationQuantity required : 1 |
||||||
|
8 |
858283 - CABLAG.CLIGNOT.AV. More informationQuantity required : 1 |
||||||
|
9 |
642116 - LAMPE 12V 21W AMBER - HY21W More informationQuantity required : 2 |
||||||
|
10 |
853139 - FEU ARRIERE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/7/9/1/img/67791.jpg)
11 |
LIGHT BULB 12V16W "PIAGGIO GENUINE PART" COMMON TO ALL THE MAXISCOOTER RANGE -638536 More informationQuantity required : 2 |
||||||
|
12 |
858285 - CABLAGE CLIGNOT. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/2/7/img/65727.jpg)
13 |
LIGHT BULB FOR TAILLIGHT 12V-5/21W "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -129953 More informationQuantity required : 1 |
||||||
|
14 |
858284 - CABLAGE FEU AR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/3/5/img/66035.jpg)
15 |
SCREW - 4,2X13 FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE PIAGGIO -259349 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/6/img/72926.jpg)
16 |
SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017410 More informationQuantity required : 2 |
||||||
|
17 |
890221 - CABLES IND.DIRE.AV D More informationQuantity required : 1 |
||||||
|
18 |
890222 - CABLES IND.DIRE.AV G More informationQuantity required : 1 |
