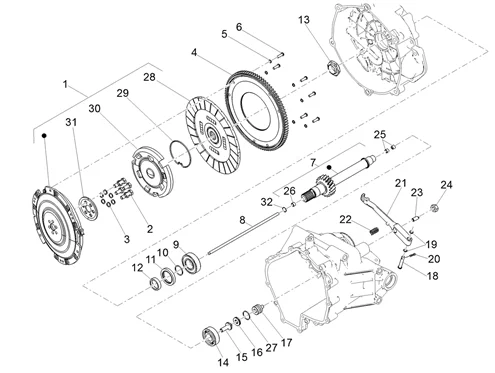

Vehicle Exploded View - MOTO-GUZZI V9 850 Roamer 850 e4 ABS 2018-2020 (EMEA)

	P2R reference	139326
	Maker reference	2A000419
	Replaced by référence 209650

2A000419 - GR.EMBRAYAGE

	P2R reference	209650
	Maker reference	1A025779

1A025779 - CLUTCH ASSEMBLY

	P2R reference	129508
	Maker reference	GU19067700

GU19067700 - VIS

	P2R reference	73448
	Maker reference	GU14615901

WASHER (8,4X13X0,8) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MOTO-GUZZI -GU14615901-

	P2R reference	140712
	Maker reference	2A000724

2A000724 - COURONNE DENTEE

	P2R reference	71912
	Maker reference	AP8152105

AP8152105 - RONDELLE

	P2R reference	146149
	Maker reference	2A000774

2A000774 - VIS

	P2R reference	140719
	Maker reference	2A000792

2A000792 - ARBRE EMBRAYAGE

	P2R reference	98005
	Maker reference	2A000216

2A000216 - ASTA COMANDO FRIZIONE

	P2R reference	132390
	Maker reference	GU92201226

GU92201226 - ROULEMENT A BILLES 25X52X15

	P2R reference	132228
	Maker reference	GU90706235

GU90706235 - JOINT TORIQUE 23,52X1,78

	P2R reference	70760
	Maker reference	886629

GASKET RING "PIAGGIO GENUINE PART" MOTO-GUZZI 750 BREVA, V7, NEVADA -886629

	P2R reference	146140
	Maker reference	1A008627

1A008627 - ENTRETOISE

	P2R reference	175655
	Maker reference	1A014685

1A014685 - BAGUE

	P2R reference	98016
	Maker reference	2A000375

2A000375 - CUSCINETTO A SFERE

	P2R reference	100931
	Maker reference	B013037

B013037 - CORPO INTERNO GUIDA REGGISPINTA FRIZIONE

	P2R reference	98017
	Maker reference	2A000376

CLUTCH THRUST BEARING "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO-GUZZI -2A000376-

	P2R reference	129197
	Maker reference	GU14086100

CLUTCH OUTER BODY "PIAGGIO GENUINE PART" MOTO-GUZZI 1100 SPORT, CALIFORNIA, GRISO, BREVA, 850 BREVA, NORGE, V10, V11, STRADA, LE-MANS, BELLAGIO -GU14086100

	P2R reference	127806
	Maker reference	2A000384

PIN FOR CLUTCH FORK "PIAGGIO GENUINE PART" COMMUN A LA GAMME MOTO-GUZZI -2A000384-

	P2R reference	98020
	Maker reference	2A000385

2A000385 - ANELLO DI TENUTA (O-RING) 6.5 X 1.5

	P2R reference	132764
	Maker reference	GU95500222

GU95500222 - GOUPILLE

	P2R reference	140709
	Maker reference	2A000631

2A000631 - LEVIER BOITE DE VITESSES

	P2R reference	132644
	Maker reference	GU94321105

LEVER RETURN SPRING -GU94321105

	P2R reference	146200
	Maker reference	2A000838

2A000838 - VIS

	P2R reference	132491
	Maker reference	GU92606508

GU92606508 - ECROU M8X1

	P2R reference	129196
	Maker reference	GU14085900

GU14085900 - DOUILLE

	P2R reference	128653
	Maker reference	GU05217630

GU05217630 - BAGUE

	P2R reference	132220
	Maker reference	GU90706170

GU90706170 - JOINT TORIQUE 17,13X2,62

	P2R reference	140718
	Maker reference	2A000770

2A000770 - DISQUE EMBRAYAGE

	P2R reference	139325
	Maker reference	2A000418

2A000418 - BAGUE

	P2R reference	140710
	Maker reference	2A000638

2A000638 - PLATEAU

	P2R reference	140714
	Maker reference	2A000741

2A000741 - RENFORCEMENT

	P2R reference	98018
	Maker reference	2A000378

2A000378 - ANELLO DI TENUTA
