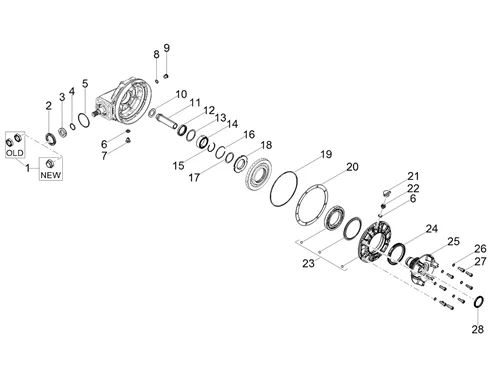

Vehicle Exploded View - MOTO-GUZZI V9 850 Bobber Sport 850 e4 ABS 2018-2019-2020 (EMEA)

	P2R reference	156875
	Maker reference	2B005012

2B005012 - ECROU

	P2R reference	99905
	Maker reference	976649

976649 - DADO ALBERO MOTORE M25X1.5

	P2R reference	140722
	Maker reference	2B000404

2B000404 - BAGUE D'ETANCHEITE

	P2R reference	140753
	Maker reference	2B001311

2B001311 - ENTRETOISE

	P2R reference	132223
	Maker reference	GU90706188

GASKET RING- BEVEL GEAR (18,77X1,78) "PIAGGIO GENUINE PART" MOTO GUZZI -GU90706188

	P2R reference	132248
	Maker reference	GU90706584

GU90706584 - JOINT 58,42X2,62

	P2R reference	101690
	Maker reference	GU01528930

GASKET FOR DRAIN CAP "PIAGGIO GENUINE PART" POUR MOTO-GUZZI BREVA, GRISO, NEVADA, NORGE, STELVIO, V-7, V-9, V-11, SPORT, CALIFORNIA, AUDACE, ELDORADO, BELAGIO -GU01528930

	P2R reference	131022
	Maker reference	GU31003766

OIL DRAIN CAP/TRANSMISSION DRAIN CAP "PIAGGIO GENUINE PART" FOR ALL MOTO-GUZZI -GU31003766

	P2R reference	111438
	Maker reference	224566

224566 - JOINT

	P2R reference	128679
	Maker reference	GU05351230

GU05351230 - BOUCHON HUILE M12X1,5

	P2R reference	131842
	Maker reference	GU37359005

GU37359005 - RONDELLE

	P2R reference	165894
	Maker reference	2B007257

2B007257 - SPACER

	P2R reference	132202
	Maker reference	GU90413850

GU90413850 - BAGUE D'ETANCHEITE 38X50X7

	P2R reference	129130
	Maker reference	GU12351100

GU12351100 - BAGUE D'ETANCHEITE

	P2R reference	156876
	Maker reference	2B006088R

2B006088R - ROULEMENT A AGUILLES

	P2R reference	140786
	Maker reference	2B002200

2B002200 - BAGUE SEEGER

	P2R reference	141214
	Maker reference	B064304

B064304 - BAGUE SEEGER

	P2R reference	129586
	Maker reference	GU19351100

GU19351100 - RONDELLE D'APPUI

	P2R reference	140840
	Maker reference	2B002536

2B002536 - DOUILLE

	P2R reference	132253
	Maker reference	GU90706958

GU90706958 - JOINT TORIQUE 158,42X2,62

	P2R reference	128505
	Maker reference	GU04355100

GU04355100 - CALE 0,6 MM

	P2R reference	128506
	Maker reference	GU04355101

GU04355101 - CALE 0,7 MM

	P2R reference	141225
	Maker reference	GU04355102

GU04355102 - CALE 0,8 MM

	P2R reference	128507
	Maker reference	GU04355103

GU04355103 - CALE 0,9 MM

	P2R reference	128508
	Maker reference	GU04355104

GU04355104 - CALE 1 MM

	P2R reference	128509
	Maker reference	GU04355105

GU04355105 - CALE 1,1 MM

	P2R reference	128510
	Maker reference	GU04355106

GU04355106 - CALE 1,2 MM

	P2R reference	140918
	Maker reference	2B002807

2B002807 - CACHE

	P2R reference	146152
	Maker reference	2A000823

2A000823 - BOUCHON PURGE

	P2R reference	160954
	Maker reference	2B0061105

2B0061105 - BRIDE

	P2R reference	140839
	Maker reference	2B002535

2B002535 - BAGUE D'ETANCHEITE

	P2R reference	175578
	Maker reference	2B007759

2B007759 - FIX COUPLING OF DUMPER

	P2R reference	73448
	Maker reference	GU14615901

WASHER (8,4X13X0,8) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MOTO-GUZZI -GU14615901-

	P2R reference	140782
	Maker reference	2B002171

2B002171 - VIS

	P2R reference	165349
	Maker reference	2B007243

2B007243 - SEAL RING 26.42.7
