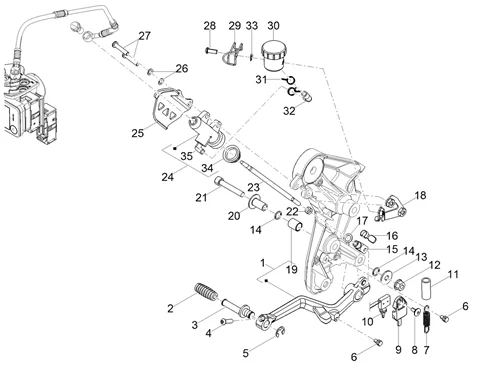

Vehicle Exploded View - MOTO-GUZZI V85 850 TT E5 ABS 2021 (EMEA) MOTO-GUZZI

Système frein abs : 06.03 POMPE FREIN ARRIÈRE
Pompe frein arrière
Search
2B005634 - LEVIER DU FREIN

1
P2R reference P2R reference 156911
Maker reference Maker reference 2B005634

2B005634 - LEVIER DU FREIN

More information

Quantity required : 1

LEVER RUBBER for REAR BRAKE LEVER "PIAGGIO GENUINE PART" FOR MOTO-GUZZI 850-1200 NORGE, BREVA, 1200 SPORT -AP8120912

2
P2R reference P2R reference 71422
Maker reference Maker reference AP8120912

LEVER RUBBER FOR REAR BRAKE LEVER "PIAGGIO GENUINE PART" FOR MOTO-GUZZI 850-1200 NORGE, BREVA, 1200 SPORT -AP8120912

More information

Quantity required : 1

REAR BRAKE PEDAL PIN "PIAGGIO GENUINE PART" POUR MOTO-GUZZI 850-1200 NORGE, BREVA, 1200 SPORT/GEAR SELECTOR PIN FOR APRILIA MOTORBIKES -AP8121221

3
P2R reference P2R reference 71452
Maker reference Maker reference AP8121221

REAR BRAKE PEDAL PIN "PIAGGIO GENUINE PART" POUR MOTO-GUZZI 850-1200 NORGE, BREVA, 1200 SPORT/GEAR SELECTOR PIN FOR APRILIA MOTORBIKES -AP8121221

More information

Quantity required : 1

AP8224470 - VIS

4
P2R reference P2R reference 72330
Maker reference Maker reference AP8224470

AP8224470 - VIS

More information

Quantity required : 1

AP8150462 - BAGUE SEEGER

5
P2R reference P2R reference 71891
Maker reference Maker reference AP8150462

AP8150462 - BAGUE SEEGER

More information

Quantity required : 1

859946 - PIVOT FIX. RESSORT

6
P2R reference P2R reference 40728
Maker reference Maker reference 859946

859946 - PIVOT FIX. RESSORT

More information

Quantity required : 2

AP8121927 - RESSORT MAN.FERIN AR.;

7
P2R reference P2R reference 71499
Maker reference Maker reference AP8121927

AP8121927 - RESSORT MAN.FERIN AR.;

More information

Quantity required : 1

SCREW - (5x9) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTORBIKE -AP8150500-

8
P2R reference P2R reference 71894
Maker reference Maker reference AP8150500

SCREW - (5X9) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTORBIKE -AP8150500-

More information

Quantity required : 1

2B004845 - SUPPORT

9
P2R reference P2R reference 156912
Maker reference Maker reference 2B004845

2B004845 - SUPPORT

More information

Quantity required : 1

2D000325 - INTERRUPTEUR STOP

10
P2R reference P2R reference 145837
Maker reference Maker reference 2D000325

2D000325 - INTERRUPTEUR STOP

More information

Quantity required : 1

AP8120822 - SILENTBLOC RESSORTS

11
P2R reference P2R reference 46661
Maker reference Maker reference AP8120822

AP8120822 - SILENTBLOC RESSORTS

More information

Quantity required : 1

967363 - ECROU

12
P2R reference P2R reference 70925
Maker reference Maker reference 967363

967363 - ECROU

More information

Quantity required : 1

AP8150018 - RONDELLE

13
P2R reference P2R reference 71810
Maker reference Maker reference AP8150018

AP8150018 - RONDELLE

More information

Quantity required : 1

AP8144007 - JOINT TORIQUE

14
P2R reference P2R reference 71738
Maker reference Maker reference AP8144007

AP8144007 - JOINT TORIQUE

More information

Quantity required : 2

FORK FOR REAR BRAKE MASTER CYLINDER "PIAGGIO GENUINE PART" COMMON TO APRILIA/ MOTO-GUZZI MOTORBIKES RANGE -AP8113081

15
P2R reference P2R reference 71287
Maker reference Maker reference AP8113081

FORK FOR REAR BRAKE MASTER CYLINDER "PIAGGIO GENUINE PART" COMMON TO APRILIA/ MOTO-GUZZI MOTORBIKES RANGE -AP8113081

More information

Quantity required : 1

CLIP FOR GEARBOX SELECTOR "PIAGGIO GENUINE PART" APRILIA 1000 CAPONORD, 750 DORSODURO/MOTO-GUZZI V7, STELVIO, GRISO -AP8113082

16
P2R reference P2R reference 71288
Maker reference Maker reference AP8113082

CLIP FOR GEARBOX SELECTOR "PIAGGIO GENUINE PART" APRILIA 1000 CAPONORD, 750 DORSODURO/MOTO-GUZZI V7, STELVIO, GRISO -AP8113082

More information

Quantity required : 1

AP8120178 - JOINT TORIQUE

17
P2R reference P2R reference 71387
Maker reference Maker reference AP8120178

AP8120178 - JOINT TORIQUE

More information

Quantity required : 1

2B005589 - PATTE RESERVOIR HUILE

18
P2R reference P2R reference 156913
Maker reference Maker reference 2B005589

2B005589 - PATTE RESERVOIR HUILE

More information

Quantity required : 1

895328 - BUSSOLA SINTERIZZATA

19
P2R reference P2R reference 99659
Maker reference Maker reference 895328

895328 - BUSSOLA SINTERIZZATA

More information

Quantity required : 1

AP8121509 - DOUILLE

20
P2R reference P2R reference 46851
Maker reference Maker reference AP8121509

AP8121509 - DOUILLE

More information

Quantity required : 1

GU98680450 - VIS M8X50

21
P2R reference P2R reference 133162
Maker reference Maker reference GU98680450

GU98680450 - VIS M8X50

More information

Quantity required : 1

AP8150026 - ECROU

22
P2R reference P2R reference 71812
Maker reference Maker reference GU92606206

AP8150026 - ECROU

More information

Quantity required : 1

AP8150026 - ECROU

22
P2R reference P2R reference 71812
Maker reference Maker reference AP8150026

AP8150026 - ECROU

More information

Quantity required : 1

2B005624 - POUSSOIR CDE MAI-CYL.

23
P2R reference P2R reference 156914
Maker reference Maker reference 2B005624

2B005624 - POUSSOIR CDE MAI-CYL.

More information

Quantity required : 1

2B000508 - POMPA IDRAULICA FRENO

24
P2R reference P2R reference 98072
Maker reference Maker reference 2B000508

2B000508 - POMPA IDRAULICA FRENO

More information

Quantity required : 1

2B005685 - PROTECTION POMPE FREIN

25
P2R reference P2R reference 156915
Maker reference Maker reference 2B005685

2B005685 - PROTECTION POMPE FREIN

More information

Quantity required : 1

AP8150182 - RONDELLE ELASTIQUE COURBE

26
P2R reference P2R reference 71835
Maker reference Maker reference AP8150182

AP8150182 - RONDELLE ELASTIQUE COURBE

More information

Quantity required : 3

AP8152128 - VIS

27
P2R reference P2R reference 50956
Maker reference Maker reference AP8152128

AP8152128 - VIS

More information

Quantity required : 2

AP8152108 - VIS

28
P2R reference P2R reference 71913
Maker reference Maker reference AP8152108

AP8152108 - VIS

More information

Quantity required : 1

RETAINING CLIP FOR REAR BRAKE TANK "PIAGGIO GENUINE PART" APRILIA 1000 CAPONORD -AP8121504

29
P2R reference P2R reference 46847
Maker reference Maker reference AP8121504

RETAINING CLIP FOR REAR BRAKE TANK "PIAGGIO GENUINE PART" APRILIA 1000 CAPONORD -AP8121504

More information

Quantity required : 1

2B002130 - RESERV. HUILE FREINS

30
P2R reference P2R reference 146699
Maker reference Maker reference 2B002130

2B002130 - RESERV. HUILE FREINS

More information

Quantity required : 1

AP8101595 - COLLIER

31
P2R reference P2R reference 71155
Maker reference Maker reference AP8101595

AP8101595 - COLLIER

More information

Quantity required : 2

2B005379 - TUYAU HUILE

32
P2R reference P2R reference 156916
Maker reference Maker reference 2B005379

2B005379 - TUYAU HUILE

More information

Quantity required : 1

AP8152181 - RONDELLE FER PLATE

33
P2R reference P2R reference 71927
Maker reference Maker reference AP8152181

AP8152181 - RONDELLE FER PLATE

More information

Quantity required : 1

AP8113288 - SOUFFLET EN CAOUTCHOUC

34
P2R reference P2R reference 71292
Maker reference Maker reference AP8113288

AP8113288 - SOUFFLET EN CAOUTCHOUC

More information

Quantity required : 1

AP8213057 - RACCORD POMPE ARRIERE

35
P2R reference P2R reference 72197
Maker reference Maker reference AP8213057

AP8213057 - RACCORD POMPE ARRIERE

More information

Quantity required : 1
