Vehicle Exploded View - MOTO-GUZZI V7 850 V7 Stone Corsa 850 E5 ABS 2023 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

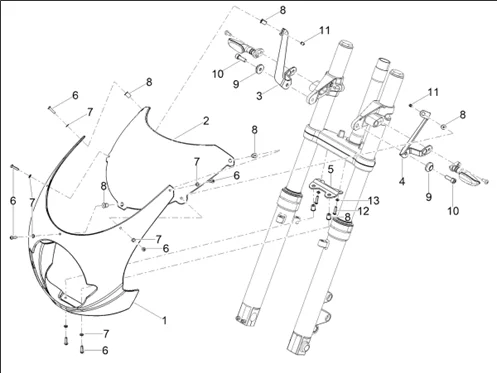

Carrosserie : 02.04 AVANT CARÈNE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1340/V7_Stone_Corsa_850_E5_ABS_2023_EMEA_02.04.png)
1 |
2B012079000Z1 - AVANT CARENAGE, ROUGE/GRIS More informationQuantity required : 1 |
||||||
|
1 |
2B012079 - AVANT CARENE BRUT More informationQuantity required : 1 |
||||||
|
2 |
2B006728 - COUPOLE More informationQuantity required : 1 |
||||||
|
3 |
2B008357 - SUPPORT DROITE More informationQuantity required : 1 |
||||||
|
4 |
2B008362 - SUPPORT GAUCHE More informationQuantity required : 1 |
||||||
|
5 |
2B008353 - BRIDE INFERIEURE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/6/img/71936.jpg)
6 |
AP8152269 - VIS More informationQuantity required : 7 |
||||||
|
7 |
894102 - RONDELLE More informationQuantity required : 7 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/0/1/img/71401.jpg)
8 |
NUT - WITH RUBBER INSERT "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO APRILIA ET MOTO-GUZZI -AP8120531 More informationQuantity required : 7 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/6/9/8/img/71698.jpg)
9 |
BUSH/WASHER FASTENING EXHAUST "PIAGGIO GENUINE PART" COMMON FOR MOTO-GUZZI RANGE -AP8134378 More informationQuantity required : 2 |
||||||
|
10 |
GU98692425 - VIS M8X25 More informationQuantity required : 2 |
||||||
|
11 |
2B006038 - CAP More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/6/6/img/73366.jpg)
12 |
CM179301 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/8/3/4/img/109834.jpg)
13 |
658830 - RONDELLE More informationQuantity required : 2 |
