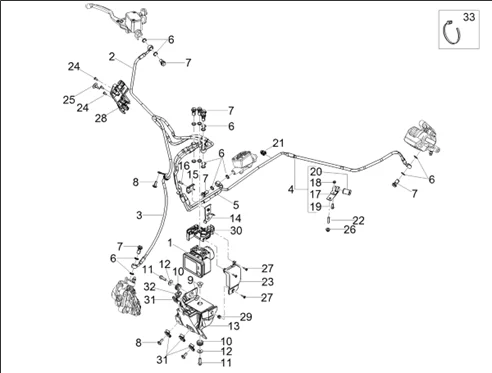

Vehicle Exploded View - MOTO-GUZZI V7 750 Stone 850 E5 ABS SPECIAL EDITION 2023 (EMEA)

	P2R reference	203704
	Maker reference	2D000712

2D000712 - FILLED ABS - SPARE PARTS - GUZZI

	P2R reference	176361
	Maker reference	2B006721

2B006721 - PUMP BRAKE HOSE - ABS CONTROL

	P2R reference	175583
	Maker reference	2B006720

2B006720 - FRONT CALIPER BRAKE HOSE-ABS CONTROL

	P2R reference	176362
	Maker reference	2B006723

2B006723 - REAR BRAKE CALIPER TUBE ABS CONTROL UNI

	P2R reference	175584
	Maker reference	2B006722

2B006722 - REAR PUMP BRAKE HOSE-ABS CONTROL

	P2R reference	71283
	Maker reference	AP8113004

AP8113004 - RONDELLE

	P2R reference	127555
	Maker reference	1C002059R

1C002059R - VIS

	P2R reference	73366
	Maker reference	CM179301

CM179301 - VIS

	P2R reference	72294
	Maker reference	AP8221023

AP8221023 - "DOUILLE EN ""T"" *"

	P2R reference	71384
	Maker reference	AP8120030

AP8120030 - CAOUTCHOUC

	P2R reference	151759
	Maker reference	2B004560

2B004560 - VIS

	P2R reference	71808
	Maker reference	AP8150015

AP8150015 - RONDELLE

	P2R reference	175581
	Maker reference	2B006724

2B006724 - ABS CONTROL UNIT SUPPORT

	P2R reference	98165
	Maker reference	2B001564

2B001564 - PIASTRA DI SUPPORTO CON P.I.

	P2R reference	98170
	Maker reference	2B001614

2B001614 - PIASTRINA FISSAGGIO TUBI FRENO ABS

	P2R reference	71910
	Maker reference	AP8152043

SCREW - (4,70X10) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8152043-

	P2R reference	128250
	Maker reference	GU03658330

GU03658330 - COLLIER

	P2R reference	70829
	Maker reference	895709

895709 - VIS

	P2R reference	71889
	Maker reference	AP8150451

NUT - "PIAGGIO GENUINE PART" COMMON TO THE RANGE APRILIA/MOTO/GUZZI -AP8150451

	P2R reference	128248
	Maker reference	GU03658201

GU03658201 - BAGUE

	P2R reference	71494
	Maker reference	AP8121882

AP8121882 - GUIDE-CABLE

	P2R reference	132803
	Maker reference	GU96451316

GU96451316 - VIS SANS TETE

	P2R reference	175587
	Maker reference	2B007092

2B007092 - CONNECTOR COVER

	P2R reference	71887
	Maker reference	AP8150444

AP8150444 - VIS TARAUD POUR PLAST. INOX

	P2R reference	71383
	Maker reference	AP8120001

AP8120001 - CAOUTCHOUC

	P2R reference	71958
	Maker reference	AP8152299

AP8152299 - ECROU AUTOBLOQU.

	P2R reference	71876
	Maker reference	AP8150413

SCREW - FOR FAIRINGS FASTENING (STAINLESS) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MOTORBIKE -AP8150413-

	P2R reference	176363
	Maker reference	2B006744

2B006744 - BRAKE PIPE DUCT

	P2R reference	71191
	Maker reference	AP8102671

AP8102671 - RIVET EN PLASTIQUE

	P2R reference	175588
	Maker reference	2B006725

2B006725 - ABS PIPING GUIDE PLATE

	P2R reference	66009
	Maker reference	254485

SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485-

	P2R reference	72140
	Maker reference	AP8201727

AP8201727 - GUIDE-CABLE NOIR

	P2R reference	129265
	Maker reference	GU14609650

GU14609650 - COLLIER 3,6X20,6
