Vehicle Exploded View - MOTO-GUZZI V7 750 V7 Stone 750 2014
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

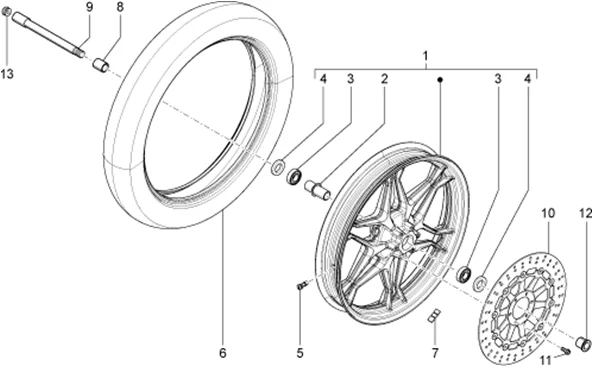

Chassis : 33.34 ROUE AV. II
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/541/V7_Stone_750_2014_33.34.PNG)
1 |
887571 - CERCHIO ANT 2.5X18" CON CUSCINETTI More informationQuantity required : 1 |
||||||
|
2 |
GU31615283 - ENTRETOISE More informationQuantity required : 1 |
||||||
|
3 |
GU92204221 - ROULEMENT More informationQuantity required : 2 |
||||||
|
4 |
GU90402642 - BAGUE D'ETANCHEITE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/8/2/1/0/img/128210.jpg)
5 |
TUBELESS TYRE VALVE "PIAGGIO GENUINE PART" GAMME MOTO-GUZZI -GU03617710 More informationQuantity required : 1 |
||||||
|
6 |
886679 - PNEU AVANT More informationQuantity required : 1 |
||||||
|
7 |
GU14616150 - CONTREPOIDS More informationQuantity required : 1 |
||||||
|
8 |
GU32615660 - ENTRETOISE D More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/2/1/5/img/131215.jpg)
9 |
FRONT WHEEL AXLE "PIAGGIO GENUINE PART" MOTO-GUZZI 750 V7 2008>, NEVADA 2002>2013 -GU31614183 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/8/7/8/1/img/98781.jpg)
10 |
FRONT BRAKE DISC "PIAGGIO GENUINE PART" MOTO-GUZZI V7, V9, NEVADA, GRISO, BELLAGIO -883688 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/8/img/71948.jpg)
11 |
SCREW - (8X20) "PIAGGIO GENUINE PART" COMMON TO THE RANGE -AP8152286 More informationQuantity required : 6 |
||||||
|
12 |
GU31616384 - ENTRETOISE G More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/5/7/2/img/132572.jpg)
13 |
GU93180111 - BOUCHON 15 MM More informationQuantity required : 1 |
