Vehicle Exploded View - MOTO-GUZZI V7 750 Racer 750 2014
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

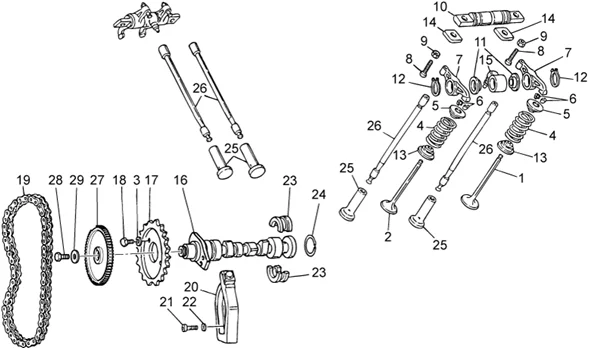

Moteur : 34.38 DISTRIBUTION
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/537/V7_Racer_750_2014_34.38.PNG)
1 |
2A000146 - VALVOLA DI ASPIRAZIONE More informationQuantity required : 2 |
||||||
|
2 |
2A000147 - VALVOLA DI SCARICO More informationQuantity required : 2 |
||||||
|
3 |
GU23217800 - RONDELLE DE SERETE More informationQuantity required : 2 |
||||||
|
4 |
GU27037521 - RESSORT More informationQuantity required : 4 |
||||||
|
5 |
GU31038015 - COUPELLE SUPERIEUR More informationQuantity required : 4 |
||||||
|
6 |
GU61038100 - DEMI-CLAVETTE More informationQuantity required : 8 |
||||||
|
7 |
82985R - BILANCIERE ASPIRAZIONE E SCARICO More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/4/7/0/img/129470.jpg)
8 |
ROCKER ADJUSTER SCREW "PIAGGIO GENUINE PARTS" COMMON TO MOTO-GUZZI 2 VALVES -GU19034000 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/4/7/2/img/132472.jpg)
9 |
GU92602406 - ECROU M6X1 More informationQuantity required : 4 |
||||||
|
10 |
GU19032080 - AXE CULBUTEUR More informationQuantity required : 2 |
||||||
|
11 |
GU32032310 - RONDELLE EVENTAIL More informationQuantity required : 4 |
||||||
|
12 |
GU90271018 - BAGUE SEEGER More informationQuantity required : 4 |
||||||
|
13 |
GU31037015 - COUPELLE INFERIEURE More informationQuantity required : 4 |
||||||
|
14 |
GU19032980 - CALE More informationQuantity required : 4 |
||||||
|
15 |
2B000579 - MANICOTTO MANDATA OLIO AI BILANCIERI More informationQuantity required : 2 |
||||||
|
16 |
GU320534104 - ARBRE A CAMES More informationQuantity required : 1 |
||||||
|
17 |
GU32054510 - ENGRENAGE DISTRIBUTION More informationQuantity required : 1 |
||||||
|
18 |
GU61054900 - BOULON More informationQuantity required : 2 |
||||||
|
19 |
GU19058021 - CHAINE DE DISTRIBUTION More informationQuantity required : 1 |
||||||
|
20 |
GU19058220 - TENDEUR DE CHAINE More informationQuantity required : 1 |
||||||
|
21 |
GU98882316 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/7/5/0/img/132750.jpg)
22 |
GU95129115 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/4/7/9/img/129479.jpg)
23 |
CAMSHAFT HALF BEARING "PIAGGIO GENUINE PART" MOTO-GUZZI 750 NEVADA, STRADA, V7, BREVA, V35, V60, V65 -GU19055700 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/1/5/4/img/132154.jpg)
24 |
GU90353029 - ANNEAU ELASTIQUE More informationQuantity required : 1 |
||||||
|
25 |
GU19045861 - POUSSOIR More informationQuantity required : 4 |
||||||
|
26 |
GU31045015 - CULBUTEUR TIGE More informationQuantity required : 4 |
||||||
|
27 |
887528 - RUOTA FONICA DISTRIBUZION More informationQuantity required : 1 |
||||||
|
28 |
GU98054422 - VIS More informationQuantity required : 1 |
||||||
|
29 |
GU95100244 - RONDELLE More informationQuantity required : 1 |
