Vehicle Exploded View - MOTO-GUZZI V7 750 V7 II Special ABS 750 2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

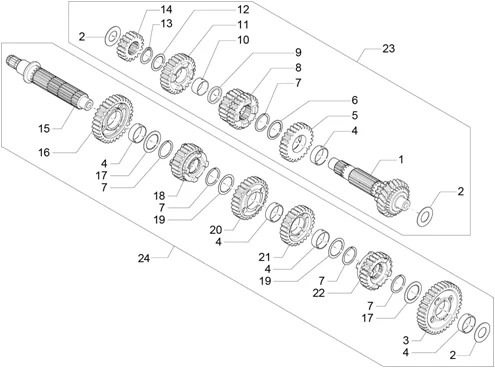

Moteur : 34.43 BOÎTE DE VITESSES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/533/V7_II_Special_ABS_750_2015_34.43.PNG)
1 |
2A000230 - ALBERO PRIMARIO CON PI More informationQuantity required : 1 |
||||||
|
2 |
1A000566 - RONDELLA DI SPALLAMENTO More informationQuantity required : 3 |
||||||
|
3 |
B017470 - INGRANAGGIO 1- VEL. ALBERO SECONDARIO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/5/9/8/img/69598.jpg)
4 |
849308 - MOYEU More informationQuantity required : 5 |
||||||
|
5 |
1A000360 - INGRANAGGIO 5- VELOCITA' SUL PRIMARIO More informationQuantity required : 1 |
||||||
|
6 |
849424 - RONDELLE More informationQuantity required : 1 |
||||||
|
7 |
1A002604 - ANELLO ELASTICO PER ALBERO More informationQuantity required : 5 |
||||||
|
8 |
1A000436 - INGR. SCORREV. 3- E 4- VEL. SUL PRIMARIO More informationQuantity required : 1 |
||||||
|
9 |
B015040 - RONDELLE D'APPUI More informationQuantity required : 1 |
||||||
|
10 |
974162 - MOYEU More informationQuantity required : 1 |
||||||
|
11 |
1A000361 - INGRANAGGIO 6- VELOCITA' SUL PRIMARIO More informationQuantity required : 1 |
||||||
|
12 |
849396 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/0/0/6/img/71006.jpg)
13 |
974165 - CIRCLIPS More informationQuantity required : 1 |
||||||
|
14 |
1A000365 - INGRANAGGIO 2- VELOCITA' SUL PRIMARIO More informationQuantity required : 1 |
||||||
|
15 |
2A000203 - ALBERO CAMBIO SECONDARIO More informationQuantity required : 1 |
||||||
|
16 |
1A000366 - INGRANAGGIO 2- VEL. ALBERO SECONDARIO More informationQuantity required : 1 |
||||||
|
17 |
849309 - RONDELLE More informationQuantity required : 2 |
||||||
|
18 |
1A000370 - INGRANAGGIO 6- VEL. ALBERO SECONDARIO More informationQuantity required : 1 |
||||||
|
19 |
849310 - RONDELLE More informationQuantity required : 2 |
||||||
|
20 |
1A000367 - INGRANAGGIO 3- VEL. ALBERO SECONDARIO More informationQuantity required : 1 |
||||||
|
21 |
1A000368 - INGRANAGGIO 4- VEL. ALBERO SECONDARIO More informationQuantity required : 1 |
||||||
|
22 |
1A000369 - INGRANAGGIO 5- VEL. ALBERO SECONDARIO More informationQuantity required : 1 |
||||||
|
23 |
2A000199 - ALBERO PRIMARIO COMPL. More informationQuantity required : 1 |
||||||
|
24 |
2A000202 - ALBERO SECONDARIO COMPL. More informationQuantity required : 1 |
