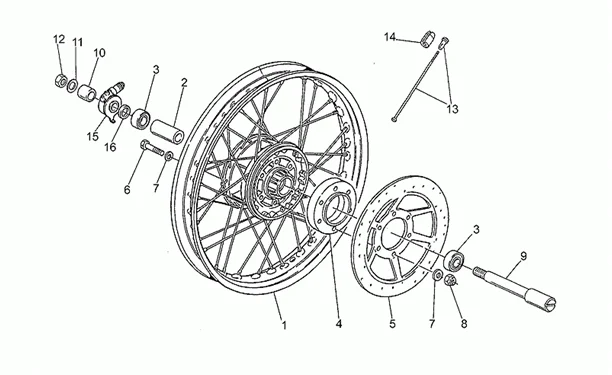

Chassis : 33.22 ROUE AV RAYONS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/530/V65_Florida_650_1986-1992_33.22.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/4/0/0/img/132400.jpg)
3 |
REAR WHEEL BEARING "PIAGGIO GENUINE PART" MOTO-GUZZI 750 V7, NEVADA, BREVA, V35, V60, V65 -GU92204217- More informationQuantity required : 2 |
||||||
5 |
GU31613380 - DISQUE FREIN More informationQuantity required : 2 |
||||||
|
6 |
GU98052475 - VIS M8X75 More informationQuantity required : 6 |
||||||
|
7 |
GU95000208 - RONDELLE More informationQuantity required : 12 |
||||||
|
9 |
GU62614120 - AXE DE ROUE AV. More informationQuantity required : 1 |
||||||
|
10 |
GU62616320 - ENTRETOISE More informationQuantity required : 1 |
||||||
|
11 |
GU95004217 - RONDELLE 17X27X2 More informationQuantity required : 1 |
||||||
|
12 |
GU92602516 - ECROU M16X1,5 More informationQuantity required : 1 |
||||||
|
13 |
GU39611601 - RAYON More informationQuantity required : 36 |
||||||
|
14 |
GU27616110 - PLOMB D EQUILIBRAGE More informationQuantity required : 1 |
||||||
|
14 |
GU27616111 - PLOMB D EQUILIBRAGE More informationQuantity required : 1 |
||||||
|
14 |
GU27616112 - PLOMB D EQUILIBRAGE More informationQuantity required : 1 |
||||||
|
14 |
GU27616113 - PLOMB D EQUILIBRAGE More informationQuantity required : 1 |
||||||
|
15 |
GU39762501 - RENVOI COMPTEUR KM More informationQuantity required : 1 |
