Vehicle Exploded View - MOTO-GUZZI V100 1000 Mandello E5 ABS 2022-2023 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

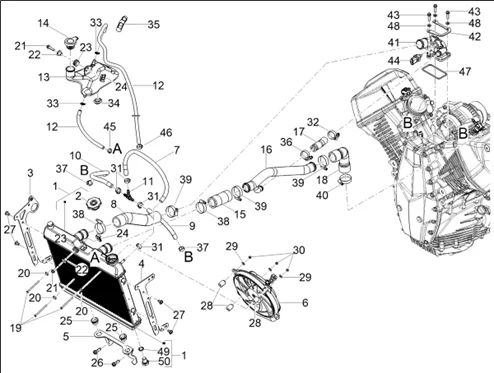

Instalation de refoidissement : 10.02 INSTALATION DE REFOIDISSEMENT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1188/V100_Mandello_E5_ABS_2022-2023_(EMEA)_10.02.png)
1 |
2B008758 - WATER COOLER More informationQuantity required : 1 |
||||||
|
2 |
2B010972 - CAP WITH THERMOSTATIC VALVE More informationQuantity required : 1 |
||||||
|
3 |
2B010546 - RH RADIATOR LATERAL BRACKET WITH I.P. More informationQuantity required : 1 |
||||||
|
4 |
2B010547 - LH RADIATOR LATERAL BRACKET WITH I.P. More informationQuantity required : 1 |
||||||
|
5 |
2B009937 - RADIATOR SUPPORT PLATE More informationQuantity required : 1 |
||||||
|
6 |
2D000572 - ELECTRIC FAN More informationQuantity required : 1 |
||||||
|
7 |
2B010345 - RADIATORE AIR VENT PIPE More informationQuantity required : 1 |
||||||
|
8 |
2B008760 - RADIATOR PIPE HOT SIDE More informationQuantity required : 1 |
||||||
|
9 |
2B010343 - LH AIR VENT PIPE More informationQuantity required : 1 |
||||||
|
10 |
2B010344 - RH AIR VENT PIPE More informationQuantity required : 1 |
||||||
|
11 |
2B002254 - RACCORD More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/8/6/8/img/70868.jpg)
12 |
FUEL HOSE "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO APRILIA + MOTO-GUZZI -896544- More informationQuantity required : 2 |
||||||
|
13 |
2B008947 - COOLING SYSTEM EXPANSION TANK More informationQuantity required : 1 |
||||||
|
14 |
2B010567 - EXPANSION TANK PLUG More informationQuantity required : 1 |
||||||
|
15 |
2B010164 - RADIATOR PIPE More informationQuantity required : 1 |
||||||
|
16 |
2B010163 - COOLING SYSTEM PIPE More informationQuantity required : 1 |
||||||
|
17 |
2B010165 - BYPASS PIPE More informationQuantity required : 1 |
||||||
|
18 |
2B010162 - COOLING PUMP CONNECTION PIPE More informationQuantity required : 1 |
||||||
|
19 |
2B009981 - HEX. SOCKET COUNTERSUNK M4 X 55 UNI5933 More informationQuantity required : 3 |
||||||
|
20 |
893823 - RONDELLE More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/3/img/71943.jpg)
21 |
AP8152280 - VIS BRIDE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/9/4/img/72294.jpg)
22 |
AP8221023 - "DOUILLE EN ""T"" *" More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/8/4/img/71384.jpg)
23 |
AP8120030 - CAOUTCHOUC More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
24 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/5/9/5/img/46595.jpg)
25 |
AP8120275 - SILENTBLOC More informationQuantity required : 2 |
||||||
|
26 |
2B002569 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/9/4/9/img/127949.jpg)
27 |
2B002187 - VIS More informationQuantity required : 4 |
||||||
|
28 |
2B009980 - SPACER More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/4/img/71804.jpg)
29 |
AP8150011 - RONDELLE More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/3/9/img/71839.jpg)
30 |
AP8150204 - ECROU AUTOFR. BAS More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/7/5/img/72875.jpg)
31 |
CM001914 - COLLIER More informationQuantity required : 4 |
||||||
|
32 |
|
||||||
|
33 |
AP8102378 - COLLIER More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/7/2/img/72272.jpg)
34 |
AP8220162 - CAOUTCHOUC More informationQuantity required : 1 |
||||||
|
35 |
2B007930 - HOSE GUIDE More informationQuantity required : 1 |
||||||
|
36 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/6/9/img/71169.jpg)
37 |
AP8102159 - COLLIER More informationQuantity required : 2 |
||||||
|
38 |
|
||||||
|
39 |
|
||||||
|
40 |
|
||||||
|
41 |
|
||||||
|
42 |
|
||||||
|
43 |
874549 - VIS BRIDE More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/8/8/0/img/67880.jpg)
44 |
TEMPERATURE SENSOR "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER/GILERA 50 SMT, RCR 2018> -640485 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/9/7/img/71397.jpg)
45 |
AP8120446 - COLLIER CLIC More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/9/3/8/img/67938.jpg)
46 |
641652 - RESSORT More informationQuantity required : 1 |
||||||
|
47 |
1A019927 - THERMOSTAT O-RING More informationQuantity required : 1 |
||||||
|
48 |
016335 - RONDELLE More informationQuantity required : 3 |
||||||
|
49 |
|
||||||
|
50 |
|
