Vehicle Exploded View - MOTO-GUZZI V35 350 V 35 Florida 350 1986-1990
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

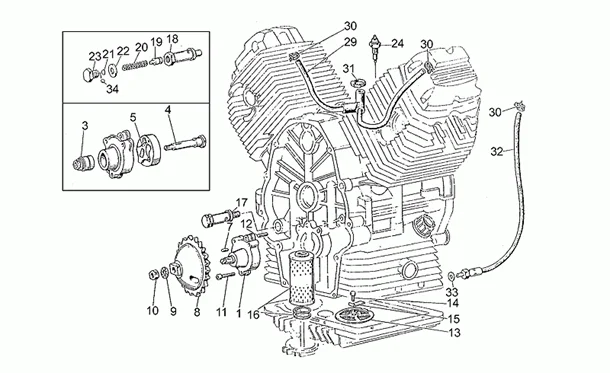

Moteur : 34.31 POMPE HUILE-FILTRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/916/V_35_Florida_350_1986-1990_34.31.png)
1 |
GU19146422 - POMPE HUILE More informationQuantity required : 1 |
||||||
|
3 |
GU92252210 - ROULEMENT A ROULEAUX More informationQuantity required : 1 |
||||||
|
4 |
GU19147820 - ARBRE ENGR.POMPE More informationQuantity required : 1 |
||||||
|
5 |
GU19148420 - ROTOR More informationQuantity required : 1 |
||||||
|
7 |
GU92296726 - ROULEAU GUIDE More informationQuantity required : 1 |
||||||
|
8 |
GU19147721 - ENGRENAGE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/2/9/img/71929.jpg)
9 |
OIL PUMP SHAFT WASHER (10,5X16X1) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO-GUZZI -AP8152220- More informationQuantity required : 1 |
||||||
|
10 |
GU92602510 - ECROU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/1/2/3/5/img/141235.jpg)
11 |
GU98620335 - VIS M6X35 More informationQuantity required : 3 |
||||||
|
12 |
GU19018920 - GOUPILLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/5/4/1/img/129541.jpg)
13 |
OIL FILTER "PIAGGIO GENUINE PART" MOTO GUZZI BREVA 2003>2009, CALIFORNIA, ELDORADO, GRISO 2015>2018 -GU19152200- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/9/2/7/img/132927.jpg)
14 |
GU98084314 - VIS M6X14 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/7/6/0/img/132760.jpg)
15 |
GU95187006 - PLAQUETTE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/5/4/2/img/129542.jpg)
16 |
OIL FILTER "PIAGGIO GENUINE PART" MOTO-GUZZI V35, V50, V65 -GU19153000- More informationQuantity required : 1 |
||||||
|
18 |
GU10158701 - CORPS SOUPAPE More informationQuantity required : 1 |
||||||
|
19 |
GU12150900 - PISTON More informationQuantity required : 1 |
||||||
|
20 |
GU94321072 - RESSORT DE SOUPAPE More informationQuantity required : 1 |
||||||
|
21 |
GU12150700 - BOUCHON More informationQuantity required : 1 |
||||||
|
22 |
GU95100523 - RONDELLE More informationQuantity required : 3 |
||||||
|
23 |
GU12159000 - BOUCHON DE CLAPET More informationQuantity required : 1 |
||||||
|
24 |
GU31999581 - DETECTEUR PRESSION More informationQuantity required : 1 |
||||||
|
29 |
GU19159600 - TUYAU RENIFLARD RADIATEUR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/9/3/img/72893.jpg)
30 |
CM002907 - COLLIER More informationQuantity required : 3 |
||||||
|
31 |
GU93305018 - COLLIER More informationQuantity required : 1 |
||||||
|
32 |
GU19159300 - TUYAU RETOUR D HUILE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/1/2/5/img/129125.jpg)
33 |
O'RING GASKET FOR OIL PIPE "PIAGGIO GENUINE PART" MOTO-GUZZI V9 2016> -GU12154200- More informationQuantity required : 1 |
