Vehicle Exploded View - APRILIA TUONO 1100 Tuono V4 1100 RR 2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

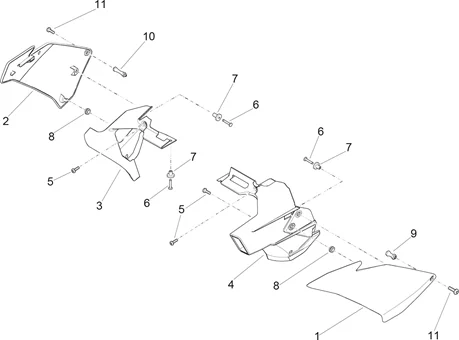

Chassis : 28.10 CARROSSERIE AV. II
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/585/Tuono_V4_1100_RR_2015_28.10.PNG)
1 |
2H000865000XHB - CARENE LAT. G More informationQuantity required : 1 |
|||||||||
|
1 |
2H001068000XHB - CARENE LATERALE G. More informationQuantity required : 1 |
|||||||||
|
2 |
2H000864000XHB - CARENE LAT. D More informationQuantity required : 1 |
|||||||||
|
2 |
2H001067000XHB - CARENE LATERALE D. More informationQuantity required : 1 |
|||||||||
|
3 |
2B001756 - ENCADREMENT DRT. More informationQuantity required : 1 |
|||||||||
|
4 |
2B005665 - ENCADREMENT More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/1/4/4/8/3/img/214483.jpg)
5 |
2B014101 - INOX HEXAGON COCKET SCREWS M5X12 More informationQuantity required : 3 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/1/img/71961.jpg)
5 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE -AP8152302 More informationQuantity required : 3 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/6/9/img/71769.jpg)
6 |
AP8144563 - RIVETTO IN PLASTICA MASCHIO More informationQuantity required : 3 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/7/3/img/71773.jpg)
7 |
CLIP FOR FAIRING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE OF MOTORBIKES -AP8144616 More informationQuantity required : 3 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/8/3/8/img/56838.jpg)
8 |
AP8220186 - CAOUTCHOUC More informationQuantity required : 2 |
|||||||||
|
9 |
893255 - ENTRETOISE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/1/8/4/9/img/41849.jpg)
10 |
890964 - ENTRETOISE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/8/3/7/img/70837.jpg)
11 |
SCREW - FOR FAIRINGS FASTENING (5X12) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTORBIKE APRILIA + MOTO-GUZZI V7-V9 -896174 More informationQuantity required : 2 |
|||||||||
