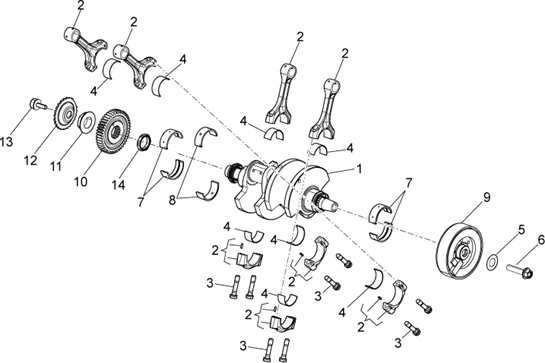

Vehicle Exploded View - APRILIA TUONO 1100 Tuono V4 1100 RF E4 ABS 2018 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)
Moteur : 29.39 ARBRE MOTEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/914/Tuono_V4_1100_RF_E4_ABS_2018_(EMEA)_29.39.png)
1 |
2A000299PP - ARBRE MOTEUR More informationQuantity required : 1 |
|||||||||
|
1 |
2A000299HH - ARBRE MOTEUR More informationQuantity required : 1 |
|||||||||
|
1 |
2A000299LL - ARBRE MOTEUR CPL. CAT. LL More informationQuantity required : 1 |
|||||||||
|
1 |
2A000299MM - ARBRE MOTEUR CPL. CAT.MM More informationQuantity required : 1 |
|||||||||
|
1 |
2A000299NN - ARBRE MOTEUR CPL. CAT.NN More informationQuantity required : 1 |
|||||||||
|
1 |
2A000299OO - ARBRE MOTEUR CPL. CAT.OO More informationQuantity required : 1 |
|||||||||
|
2 |
2A000622AA - BIELLE CPL. AA More informationQuantity required : 1 |
|||||||||
|
2 |
2A000622EE - BIELLE CPL. EE More informationQuantity required : 1 |
|||||||||
|
2 |
2A000622BB - BIELLE COMPL. CLASS BB More informationQuantity required : 1 |
|||||||||
|
2 |
2A000622CC - BIELLE COMPL. CLASS CC More informationQuantity required : 1 |
|||||||||
|
2 |
1A019988DD- BIELLE COMPL. CLASS DD More informationQuantity required : 1 |
|||||||||
|
2 |
1A019988DD- BIELLE COMPL. CLASS DD More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/2/6/3/3/img/62633.jpg)
3 |
SCREW - FOR CONNECTING ROD "PIAGGIO GENUINE PART" APRILIA 1000-1100 RSV-4, TUONO V4 -B045844 More informationQuantity required : 8 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/1/1/1/8/0/img/211180.jpg)
4 |
1A0252080V - CONROD HALF BEARING More informationQuantity required : 2 |
|||||||||
|
4 |
1A0252080B - CONROD HALF BEARING More informationQuantity required : 2 |
|||||||||
|
4 |
1A0252080B - CONROD HALF BEARING More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/6/5/2/6/img/146526.jpg)
4 |
2A0008370G - DEMI-ROULLEMENT More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/6/5/2/7/img/146527.jpg)
4 |
2A0008370V - DEMI-ROULLEMENT More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/1/2/0/5/1/img/212051.jpg)
4 |
DEMI COUSSINET DE BIELLE JAUNE ORIGINE PIAGGIO RSV4, TUONO 1100, 660 APRILIA 2017> -1A0252080G More informationQuantity required : 2 |
|||||||||
|
5 |
897478 - RONDELLE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/7/5/3/img/69753.jpg)
6 |
SCREW - FOR IGNITION ROTOR (12X1,25X50) "PIAGGIO GENUINE PART" APRILIA 1000-1100 RSV-4, TUONO V4/MOTO-GUZZI 750 V7, 850 V9 -857206 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/8/9/4/0/img/108940.jpg)
7 |
BEARING SHELL -- BLUE "PIAGGIO GENUINE PART" APRILIA 1000 RSV-4, TUONO -8571320B- More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/8/9/4/1/img/108941.jpg)
7 |
BEARING SHELL - YELLOW "PIAGGIO GENUINE PART" APRILIA 1000 RSV-4, TUONO -8571320G More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/8/9/4/4/img/108944.jpg)
7 |
8571320V - DEMI ROULEMENT More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/8/9/3/5/img/108935.jpg)
8 |
BEARING SHELL - BLUE "PIAGGIO GENUINE PART" PIAGGIO APRILIA 1000 RSV-4, TUONO -8571300B More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/8/9/3/6/img/108936.jpg)
8 |
8571300G - DEMI ROULEMENT More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/8/9/3/9/img/108939.jpg)
8 |
8571300V - DEMI ROULEMENT More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/6/4/2/6/img/156426.jpg)
9 |
1A010574 - VOLANT MAGNETIQUE More informationQuantity required : 1 |
|||||||||
|
10 |
899484 - ENGRENAGE More informationQuantity required : 1 |
|||||||||
|
11 |
B043204 - BAGUE More informationQuantity required : 1 |
|||||||||
|
12 |
857118 - CODEUR COMPTEUR More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/0/2/7/8/img/40278.jpg)
13 |
857077 - VIS SPECIALE More informationQuantity required : 1 |
|||||||||
|
14 |
897474 - ENTRETOISE More informationQuantity required : 1 |
|||||||||
