Vehicle Exploded View - APRILIA TUAREG 660 E5 ABS 2021 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

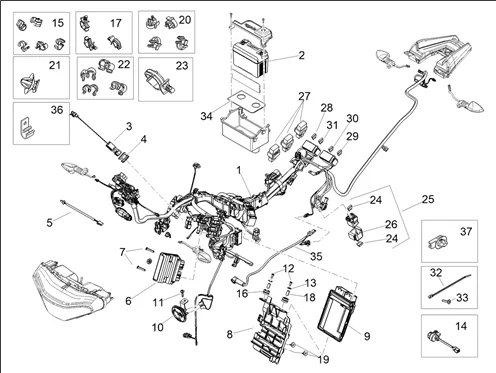

Dispositifs électriques : 11.01 CIRCUIT ELECTRIQUE AV
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1016/Tuareg_660_E5_ABS_2021_(EMEA)_11.01.png)
1 |
2D000684 - MAIN HARNESS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/1/6/7/3/img/171673.jpg)
2 |
2D000579 - LITHIUM BATTERY More informationQuantity required : 1 |
||||||
|
3 |
1D003323 - USB SOCKET More informationQuantity required : 1 |
||||||
|
4 |
1B001591 - PASSE CABLES More informationQuantity required : 1 |
||||||
|
5 |
1D003720R - ROOM TEMPERATURE SENSOR More informationQuantity required : 1 |
||||||
|
5 |
1D003720R - ROOM TEMPERATURE SENSOR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/8/2/5/1/img/158251.jpg)
6 |
1A012332 - REGULATEUR DE TENSION More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/2/img/71942.jpg)
7 |
AP8152279 - VIS BRIDE More informationQuantity required : 2 |
||||||
|
8 |
2B009039 - ELECTRIC DEVICE BRACKET More informationQuantity required : 1 |
||||||
|
9 |
CM3018104 - ELECTRONIC CONTROL UNIT More informationQuantity required : 1 |
||||||
|
10 |
854830 - AVERTISSEUR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/1/img/71941.jpg)
11 |
AP8152277 - VIS BRIDE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/1/4/img/71914.jpg)
12 |
AP8152117 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/2/7/img/71927.jpg)
13 |
AP8152181 - RONDELLE FER PLATE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/9/6/9/img/67969.jpg)
14 |
642248 - SENSOR DE CHUTE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/1/9/img/72919.jpg)
15 |
CM013203 - RESSORT More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/7/1/img/72271.jpg)
16 |
AP8220150 - CAOUTCHOUC More informationQuantity required : 2 |
||||||
|
17 |
AP8221310 - PASSE-CABLE More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/9/9/0/img/56990.jpg)
18 |
AP8221017 - ENTRETOISE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/8/3/img/71383.jpg)
19 |
AP8120001 - CAOUTCHOUC More informationQuantity required : 2 |
||||||
|
20 |
668762 - COLLIER More informationQuantity required : 5 |
||||||
|
21 |
890760 - SUPPORT More informationQuantity required : 5 |
||||||
|
22 |
894704 - More informationQuantity required : 12 |
||||||
|
23 |
AP8221311 - PASSE-CABLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/0/1/img/73401.jpg)
24 |
CM225730 - FUSIBLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/6/1/9/7/img/146197.jpg)
25 |
RELAY FOR ELECTRIC STARTER "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 300-400-500 CC/APRILIA 900 SHIVER, DORSODURO, 1000 RSV-4, TUONO V4 -1D001697R- More informationQuantity required : 1 |
||||||
|
26 |
RELAY FOR ELECTRIC STARTER "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 300-400-500 CC/APRILIA 900 SHIVER, DORSODURO, 1000 RSV-4, TUONO V4 -1D001697R- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/3/2/9/img/72329.jpg)
27 |
RELAY 12V/30A "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO APRILIA/MOTO-GUZZI -AP8224462- More informationQuantity required : 3 |
||||||
|
28 |
CM225605 - FUSIBLE More informationQuantity required : 1 |
||||||
|
29 |
CM225620 - FUSIBLE More informationQuantity required : 1 |
||||||
|
30 |
CM225607 - FUSIBLE More informationQuantity required : 1 |
||||||
|
31 |
CM225615 - More informationQuantity required : 1 |
||||||
|
32 |
2D000676 - CLAMP More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/7/0/img/71970.jpg)
33 |
AP8152329 - VIS SWP CROIS. BRID. More informationQuantity required : 1 |
||||||
|
34 |
2B009593 - BATTERY RUBBER SUPPORT More informationQuantity required : 1 |
||||||
|
35 |
2D000685 - STARTING MOTOR WIRES More informationQuantity required : 1 |
||||||
|
36 |
2D000741 - FAIRLEAD More informationQuantity required : 1 |
||||||
|
37 |
1D000129 - JOINT More informationQuantity required : 2 |
