Vehicle Exploded View - APRILIA SXV 550 2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

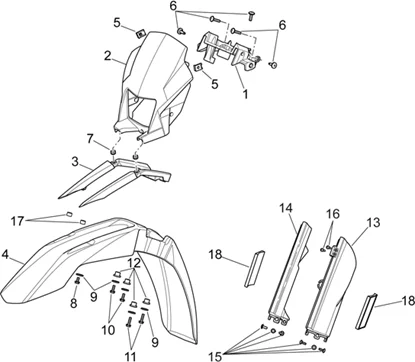

Chassis : 28.09 CARROSSERIE AV. I
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/642/SXV_550_2008_28.09.PNG)
1 |
855104 - SUPPORT More informationQuantity required : 1 |
||||||
|
1 |
AP9100517 - SUPPORTO STRUMENTO More informationQuantity required : 1 |
||||||
|
2 |
85813800XN4 - COUPOLE, NOIR More informationQuantity required : 1 |
||||||
|
2 |
85813900XN4 - COUPOLE, NOIR More informationQuantity required : 1 |
||||||
|
2 |
AP8184489 - COUPOLE More informationQuantity required : 1 |
||||||
|
2 |
AP8184517 - COUPOLE More informationQuantity required : 1 |
||||||
|
3 |
858388 - TIRANT GARDE-BOUE AV More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/7/1/0/0/img/97100.jpg)
4 |
FRONT MUDGUARD - "PIAGGIO GENUINE PART" APRILIA 450-550 RXV, SXV -AP8156343 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
5 |
CLIP M5 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8102375 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/7/3/img/71973.jpg)
6 |
SCREW - (5X9) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTORBIKE -AP8152339 More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/9/3/img/71393.jpg)
7 |
AP8120405 - CAOUTCHOUC More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/1/img/71941.jpg)
8 |
AP8152277 - VIS BRIDE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/8/img/71808.jpg)
9 |
AP8150015 - RONDELLE More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/6/8/3/img/151683.jpg)
10 |
AP8152278 - VIS BRIDE M6X16 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/9/7/6/img/50976.jpg)
11 |
AP8152283 - VIS BRIDE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/7/3/3/3/img/97333.jpg)
12 |
AP9100501 - BUSSOLA COLLETTO D20-D10,5-SP3 More informationQuantity required : 4 |
||||||
|
13 |
LEFT FORK COVER "PIAGGIO GENUINE PART" APRILIA 450-550 RSV, RXV -AP9100440- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/7/3/0/7/img/97307.jpg)
14 |
RIGHT FORK COVER "PIAGGIO GENUINE PART" APRILIA 450-550 RSV, RXV -AP9100441 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/7/3/5/6/img/97356.jpg)
15 |
AP9100548 - VITE CON BOCCOLA M6X1 L=14 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/4/3/img/71843.jpg)
16 |
AP8150246 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/5/9/7/img/72597.jpg)
17 |
AP9100053 - BUSSOLA COLLETTO D16-D10-SP3.5 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/4/4/img/73444.jpg)
18 |
GU05781630 - CATADIOPTRE, AMBRE More informationQuantity required : 2 |
