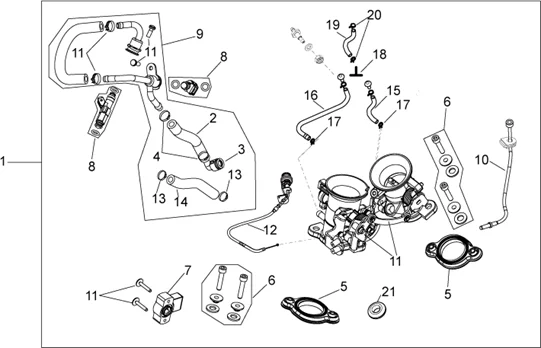

Moteur : 29.50 CORPS À PAPILLON
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/625/SXV_450_Street_Legal_2009-2011_29.50.PNG)
1 |
855213 - CORPS A PAPILLON CPL. More informationQuantity required : 1 |
||||||
|
1 |
855214 - CORPS A PAPILLON CPL. More informationQuantity required : 1 |
||||||
|
2 |
855947 - TUYAU ESSENCE More informationQuantity required : 1 |
||||||
|
3 |
AP9100494 - RACCORDO INNESTO RAPIDO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/7/4/1/5/img/97415.jpg)
4 |
AP9100714 - FASCETTA CLIC 14,5X8 More informationQuantity required : 2 |
||||||
|
5 |
AP9101008 - KIT GUARNIZIONI More informationQuantity required : 1 |
||||||
|
6 |
AP9101009 - KIT VITI FISSAGGIO More informationQuantity required : 1 |
||||||
|
7 |
AP9101010 - POTENZIOMETRO More informationQuantity required : 1 |
||||||
|
8 |
AP9101011 - INIETTORE More informationQuantity required : 2 |
||||||
|
9 |
855948 - TUYAU ESSENCE More informationQuantity required : 1 |
||||||
|
10 |
AP9101013 - CAVO REGOLAZIONE MINIMO More informationQuantity required : 1 |
||||||
|
11 |
AP9101014 - KIT VITI, FASCETTE, CLIP More informationQuantity required : 1 |
||||||
|
12 |
855490 - CABLE STARTER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/9/5/img/71395.jpg)
13 |
AP8120422 - COLLIER, NOIR More informationQuantity required : 2 |
||||||
|
14 |
860593 - MANCHON More informationQuantity required : 1 |
||||||
|
15 |
855929 - MANCHON More informationQuantity required : 1 |
||||||
|
16 |
855930 - MANCHON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/8/9/img/72889.jpg)
17 |
HOSE CLAMP "PIAGGIO GENUINE PART" APRILIA /PIAGGIO /GILERA /VESPA -CM002902 More informationQuantity required : 4 |
||||||
|
18 |
833658 - RACCORD More informationQuantity required : 1 |
||||||
|
19 |
855236 - TUYAU CAOUTCHOUC More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/9/1/img/72891.jpg)
20 |
CM002904 - COLLIER More informationQuantity required : 2 |
||||||
|
21 |
178609 - PASSE-CABLE More informationQuantity required : 1 |
