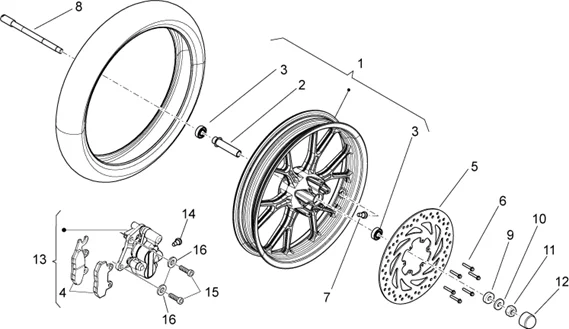

Chassis : 28.28 ROUE AV. II
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/678/SX_50_2014_28.28.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/2/3/8/img/70238.jpg)
1 |
FRONT WHEEL "PIAGGIO GENUINE PART" GILERA 50 SMT 2011>/APRILIA 50 SX 2011> -86690500WNB- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/4/3/6/img/64436.JPG)
2 |
00H01205031 - ENTRETOISE DE ROULEMENT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/4/8/1/img/67481.jpg)
3 |
REAR WHEEL BEARING "PIAGGIO GENUINE PART" GILERA 50 SMT 2011> -601345- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/3/0/4/img/70304.jpg)
4 |
BRAKE PADS - "PIAGGIO GENUINE PART" APRILIA 50 SX-RX 2011> FRONT (PAIR) -867239 - More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/2/3/9/img/70239.jpg)
5 |
FRONT BRAKE DISC "PIAGGIO GENUINE PART" 50 GILERA SMT, RCR 2011>/APRILIA 50 SX, RX 2011> AVANT -866919- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/7/5/9/img/151759.jpg)
6 |
2B004560 - VIS More informationQuantity required : 6 |
||||||
|
6 |
2B004560 - VIS More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/3/6/img/72136.JPG)
7 |
AP8201546 - SOUPAPE TUBELESS; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/9/3/2/img/69932.jpg)
8 |
FRONT WHEEL AXLE "PIAGGIO GENUINE PART" GILERA 50 SMT RACING/APRILIA 50 SX, RX -86191R- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/2/7/4/img/70274.jpg)
9 |
SPACER- FOR FRONT WHEEL "PIAGGIO GENUINE PART" GILERA 50 RCR 2011>2015/APRILIA 50 RX, SX 2011>1016 -866990- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/8/4/6/img/50846.jpg)
10 |
AP8150208 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/2/1/4/img/64214.jpg)
11 |
NUT - FOR REAR WHEEL "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR -00H00300672- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/4/2/5/img/64425.jpg)
12 |
FRONT WHEEL GUARD "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00H01201331- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/2/8/3/img/70283.jpg)
13 |
FRONT BRAKE CALIPER "PIAGGIO GENUINE PART" GILERA 50 SMT RACING/APRILIA 50 SX, RX -867056- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/3/0/5/img/70305.jpg)
14 |
SCREW - BRAKE DRAIN SCREW "PIAGGIO GENUINE PART" APRILIA 50-125 RS 2011>, 50 SX, RX 2011>, 50 SMT, RCR 2011> -867240- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/0/img/71950.jpg)
15 |
SCREW - (8X30) MULTI PURPOSE "PIAGGIO GENUINE PART" -AP8152288- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/0/img/71870.jpg)
16 |
SPRING WASHER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8150376- More informationQuantity required : 2 |
