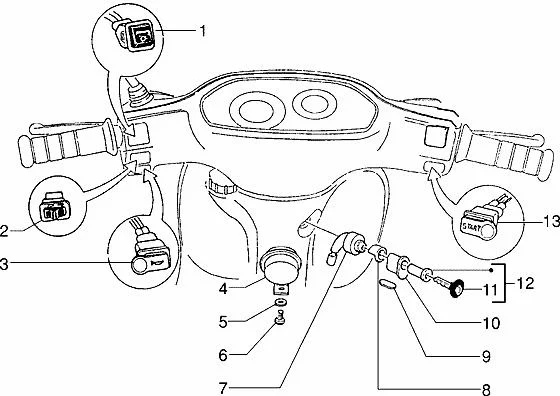

Vehicle Exploded View - GILERA STORM 50 1998-2005 GILERA

Connexions électriques : T39 DISPOSITIFS ELECTRIQUES
Dispositifs electriques
Search
LIGHTS SWITCH "PIAGGIO GENUINE PART" 50 TYPHOON, ZIP, NRG, 125 HEXAGON -290688-

1
P2R reference P2R reference 77612
Maker reference Maker reference 290688

LIGHTS SWITCH "PIAGGIO GENUINE PART" 50 TYPHOON, ZIP, NRG, 125 HEXAGON -290688-

More information

Quantity required : 1
TURN SIGNAL SWITCH "PIAGGIO GENUINE PART" COMMON FOR ALL SCOOTER 50 CC 1998>2005 -294917-

2
P2R reference P2R reference 66278
Maker reference Maker reference 294917

TURN SIGNAL SWITCH "PIAGGIO GENUINE PART" COMMON FOR ALL SCOOTER 50 CC 1998>2005 -294917-

More information

Quantity required : 1
HORN SWITCH "PIAGGIO GENUINE PART" COMMON TO THE 50cc SCOOTER RANGE 1998>2005 -292364-

3
P2R reference P2R reference 66252
Maker reference Maker reference 292364

HORN SWITCH "PIAGGIO GENUINE PART" COMMON TO THE 50CC SCOOTER RANGE 1998>2005 -292364-

More information

Quantity required : 1
HORN "PIAGGIO GENUINE PART" -CM071803-

4
P2R reference P2R reference 72984
Maker reference Maker reference CM071803

HORN "PIAGGIO GENUINE PART" -CM071803-

More information

Quantity required : 1
016406 - RONDELLE S01640600

5
P2R reference P2R reference 65416
Maker reference Maker reference 016406

016406 - RONDELLE S01640600

More information

Quantity required : 1
031086 - VIS S03108600

6
P2R reference P2R reference 65637
Maker reference Maker reference 031086

031086 - VIS S03108600

More information

Quantity required : 1
292071 - COMMUTATEUR

7
P2R reference P2R reference 77653
Maker reference Maker reference 292071

292071 - COMMUTATEUR

More information

Quantity required : 1
LOCK BLOCK "PIAGGIO GENUINE PART" VESPA 125 PX, 50 TYPHOON, NRG, APE -178562-

8
P2R reference P2R reference 65785
Maker reference Maker reference 178562

LOCK BLOCK "PIAGGIO GENUINE PART" VESPA 125 PX, 50 TYPHOON, NRG, APE -178562-

More information

Quantity required : 1
KEY LOCK PLATE "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -178559-

9
P2R reference P2R reference 65784
Maker reference Maker reference 178559

KEY LOCK PLATE "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -178559-

More information

Quantity required : 1
LOCK BODY "PIAGGIO GENUINE PART" 50 TYPHOON 1998>2009, NRG 1998>2004, ZIP 1995>1999125 PX/GILERA 50 STALKER -2977775-

10
P2R reference P2R reference 77948
Maker reference Maker reference 297777

LOCK BODY "PIAGGIO GENUINE PART" 50 TYPHOON 1998>2009, NRG 1998>2004, ZIP 1995>1999125 PX/GILERA 50 STALKER -2977775-

More information

Quantity required : 1
KEYBLANK "PIAGGIO GENUINE PART" 50 NRG, TYPHOON , ZIP 1998>2005 -257710-

11
P2R reference P2R reference 66024
Maker reference Maker reference 257710

KEYBLANK "PIAGGIO GENUINE PART" 50 NRG, TYPHOON , ZIP 1998>2005 -257710-

More information

Quantity required : 2
LOCK CYLINDER WITH KEYS "PIAGGIO GENUINE PART" 50 TYPHOON 2006>2010, NRG 2000>2004, NTT -2577032-

12
P2R reference P2R reference 77037
Maker reference Maker reference 179292

LOCK CYLINDER WITH KEYS "PIAGGIO GENUINE PART" 50 TYPHOON 2006>2010, NRG 2000>2004, NTT -2577032-

More information

Quantity required : 1
ELECTRIC STARTER SWITH "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 1998>2005 -294398-

13
P2R reference P2R reference 66273
Maker reference Maker reference 294398

ELECTRIC STARTER SWITH "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 1998>2005 -294398-

More information

Quantity required : 1
LIGHTS SWITCH "PIAGGIO GENUINE PART" 50 TYPHOON, ZIP 1995>2000, 125 HEGAGONE, SKIPPER -291954-

14
P2R reference P2R reference 77649
Maker reference Maker reference 291954

LIGHTS SWITCH "PIAGGIO GENUINE PART" 50 TYPHOON, ZIP 1995>2000, 125 HEGAGONE, SKIPPER -291954-

More information

Quantity required : 1
