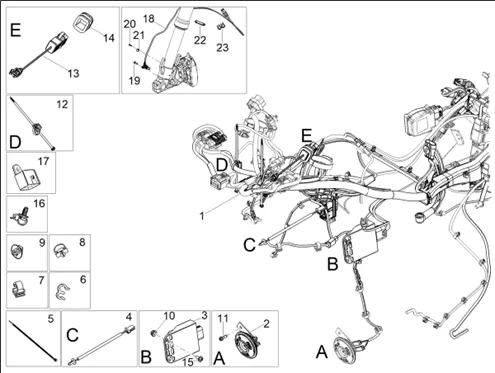

Dispositifs électriques : 11.01 CIRCUIT ELECTRIQUE AV
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1213/Stelvio_E5_ABS_2024_EMEA_11.01.png)
1 |
2D000789 - CâBLAGE PRINCIPAL More informationQuantity required : 1 |
||||||
|
2 |
2D000762 - HORN More informationQuantity required : 1 |
||||||
|
3 |
2D000724 - CAV UNIT More informationQuantity required : 1 |
||||||
|
4 |
1D003720R - ROOM TEMPERATURE SENSOR More informationQuantity required : 1 |
||||||
|
4 |
1D003720R - ROOM TEMPERATURE SENSOR More informationQuantity required : 1 |
||||||
|
5 |
AP8102386 - FASCETTA IN NYLON NERA More informationQuantity required : 2 |
||||||
|
6 |
894704 - More informationQuantity required : 10 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/4/0/img/72140.jpg)
7 |
AP8201727 - GUIDE-CABLE NOIR More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/6/7/img/65967.jpg)
8 |
231590 - CLIPS More informationQuantity required : 8 |
||||||
|
9 |
890760 - SUPPORT More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/8/img/71958.jpg)
10 |
AP8152299 - ECROU AUTOBLOQU. More informationQuantity required : 1 |
||||||
|
11 |
2B002569 - VIS More informationQuantity required : 1 |
||||||
|
12 |
1D002265 - COLLIER More informationQuantity required : 2 |
||||||
|
13 |
1D002753 - PRISE USB More informationQuantity required : 1 |
||||||
|
14 |
1B001591 - PASSE CABLES More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/3/img/71933.jpg)
15 |
SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE APRILIA -AP8152246 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/5/9/3/img/127593.jpg)
16 |
1D001143 - COLLIER More informationQuantity required : 2 |
||||||
|
17 |
2B010679 - CONNECTOR CAP More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/8/6/6/0/img/178660.jpg)
18 |
1D003350 - ACTIVE ABS WHEEL SPEED SENSOR More informationQuantity required : 1 |
||||||
|
19 |
1C001499 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/8/9/7/7/img/158977.jpg)
20 |
581957 - VIS More informationQuantity required : 1 |
||||||
|
21 |
859777 - PLAQUETTE More informationQuantity required : 1 |
||||||
|
22 |
GU03609600 - COLLIER L36 MM More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/6/1/0/img/72610.jpg)
23 |
AP9100519 - MOLLETTA FISS.CAVO More informationQuantity required : 1 |
