Vehicle Exploded View - MOTO-GUZZI STELVIO 1200 1200 2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

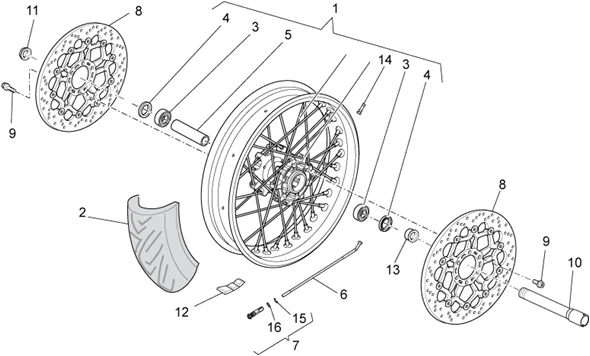

Chassis : 33.33 ROUE AV.
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/520/Stelvio_1200_1200_2008_33.33.PNG)
1 |
SPOKED FRONT WHEEL "PIAGGIO GENUINE PART" MOTO-GUZZI 1200 STELVIO NTX -883009 More informationQuantity required : 1 |
||||||
|
2 |
978026 - PNEU S. CHAMBRE More informationQuantity required : 1 |
||||||
|
3 |
AP8125777 - ROULEMENT More informationQuantity required : 2 |
||||||
|
4 |
AP8125773 - BAGUE D'ETANCHEITE More informationQuantity required : 2 |
||||||
|
5 |
978516 - ENTRETOISE ROULEMENTS More informationQuantity required : 1 |
||||||
|
6 |
978864 - RAGGIO More informationQuantity required : 36 |
||||||
|
7 |
883287 - NIPPLO SISTEMA STS X SPESS 6 More informationQuantity required : 1 |
||||||
|
7 |
978810 - NIPPLO SISTEMA STS More informationQuantity required : 36 |
||||||
|
8 |
978764 - DISCO FRENO ANT 320X5 FLANGIA NERO More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/7/img/71947.jpg)
9 |
SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8152285 More informationQuantity required : 12 |
||||||
|
10 |
978030 - PERNO RUOTA ANT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/9/8/4/img/50984.jpg)
11 |
AP8152335 - ECROU DE ROUE More informationQuantity required : 1 |
||||||
|
11 |
AP8152335 - ECROU DE ROUE More informationQuantity required : 1 |
||||||
|
12 |
GU14616150 - CONTREPOIDS More informationQuantity required : 1 |
||||||
|
13 |
GU06616300 - ENTRETOISE More informationQuantity required : 1 |
||||||
|
14 |
978814 - *VALVOLA TUBLESS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/0/7/6/6/img/100766.jpg)
15 |
SNAP RING FOR WHEEL NUT (TUBELESS) "PIAGGIO GENUINE PART" MOTO-GUZZI 940 BELLAGIO, 1400 ELDORADO, 1200 STELVIO, GRISO -978811 More informationQuantity required : 36 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/2/0/8/img/132208.jpg)
16 |
SEAL RING GASKET- FRONT / REAR WHEEL (6,07X1,78) "PIAGGIO GENUINE PART" MOTO-GUZZI 1400 ELDORADO, 940 BELLAGIO, 1200 GRISO, STELVIO -GU90706061 More informationQuantity required : 36 |
