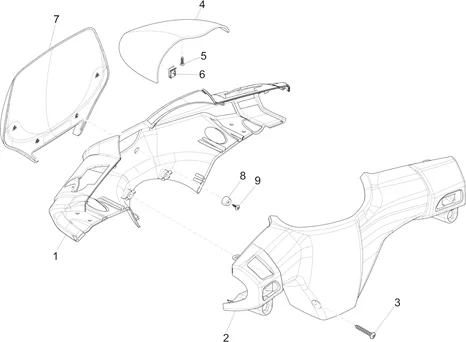

Vehicle Exploded View - GILERA STALKER 50 2005-2006 GILERA

Guidon/direction : 03.01 COUVERTURES GUIDON
Couvertures guidon
Search
62236200EE - COUVRE GUIDON SIMPLE DISQUE

1
P2R reference P2R reference 84599
Maker reference Maker reference 62236200EE

62236200EE - COUVRE GUIDON SIMPLE DISQUE

More information

Quantity required : 1
STEERING COVER- FRONT "PIAGGIO GENUINE PART" GILERA 50 STALKER RAW TO BE PAINT -624910-

1
P2R reference P2R reference 85444
Maker reference Maker reference 624910

STEERING COVER- FRONT "PIAGGIO GENUINE PART" GILERA 50 STALKER RAW TO BE PAINT -624910-

More information

Quantity required : 1
62491000A3 - COUVRE GUIDON SIMPLE DISQUE

1
P2R reference P2R reference 85449
Maker reference Maker reference 62491000A3

62491000A3 - COUVRE GUIDON SIMPLE DISQUE

More information

Quantity required : 1
62491000R7 - COUVRE GUIDON SIMPLE DISQUE

1
P2R reference P2R reference 85459
Maker reference Maker reference 62491000R7

62491000R7 - COUVRE GUIDON SIMPLE DISQUE

More information

Quantity required : 1
REAR HANDLEBAR COVER "PIAGGIO GENUINE PART" GILERA 50 STALKER -560846000C-

2
P2R reference P2R reference 79738
Maker reference Maker reference 560846000C

REAR HANDLEBAR COVER "PIAGGIO GENUINE PART" GILERA 50 STALKER -560846000C-

More information

Quantity required : 1
SCREW - (L35MM) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -296458-

3
P2R reference P2R reference 66293
Maker reference Maker reference 296458

SCREW - (L35MM) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -296458-

More information

Quantity required : 4
624631 - COUVERCLE INSTRUMENT

4
P2R reference P2R reference 85351
Maker reference Maker reference 624631

624631 - COUVERCLE INSTRUMENT

More information

Quantity required : 1
267115 - VIS

5
P2R reference P2R reference 66058
Maker reference Maker reference 267115

267115 - VIS

More information

Quantity required : 2
248419 - PLAQUETTE PLASTIQUE

6
P2R reference P2R reference 65998
Maker reference Maker reference 248419

248419 - PLAQUETTE PLASTIQUE

More information

Quantity required : 1
FRONT FAIRING KIT "PIAGGIO GENUINE PART" GILERA 50 STALKER RAW TO BE PAINT -621759-

7
P2R reference P2R reference 84080
Maker reference Maker reference 621759

FRONT FAIRING KIT "PIAGGIO GENUINE PART" GILERA 50 STALKER RAW TO BE PAINT -621759-

More information

Quantity required : 1
FRONT FAIRING KIT "PIAGGIO GENUINE PART" GILERA 50 STALKER GREY -62175900E1-

7
P2R reference P2R reference 84082
Maker reference Maker reference 62175900E1

FRONT FAIRING KIT "PIAGGIO GENUINE PART" GILERA 50 STALKER GREY -62175900E1-

More information

Quantity required : 1
230872 - CUVETTE

8
P2R reference P2R reference 76670
Maker reference Maker reference 230872

230872 - CUVETTE

More information

Quantity required : 4
SCREW - FOR FAIRINGS FASTENING (3,5x13) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -297498-

9
P2R reference P2R reference 66301
Maker reference Maker reference 297498

SCREW - FOR FAIRINGS FASTENING (3,5X13) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -297498-

More information

Quantity required : 4
