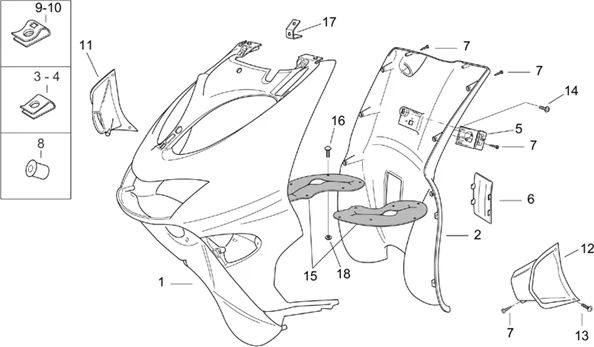

Vehicle Exploded View - APRILIA SR 50 H2O IE-Carb. 2003-2012 (APAC EMEA)

	P2R reference	59927
	Maker reference	AP8268218

AP8268218 - SCUDO ANT.V.GRIGIO PIOMBO

	P2R reference	59412
	Maker reference	AP8258781

AP8258781 - TABLIER AVANT PEINT NOIR

	P2R reference	59470
	Maker reference	AP8258843

AP8258843 - TABLIER AV. PEINT ROUGE;

	P2R reference	139355
	Maker reference	AP82693565

AP82693565 - TABLIER AV. PEINT ROUGE

	P2R reference	164010
	Maker reference	AP8268271

AP8268271 - TABLIER AV NOIR AP.

	P2R reference	60204
	Maker reference	AP8268717

AP8268717 - TABLIER AV. PEINT

	P2R reference	139357
	Maker reference	AP82693635

AP82693635 - TABLIER AVANT PEINT NOIR

	P2R reference	59918
	Maker reference	AP8268203

AP8268203 - SCUDO ANT.V.ROSSO FLUO

	P2R reference	59450
	Maker reference	AP8258822

AP8258822 - TABLIER AVANT PEINT NOIR;

	P2R reference	59946
	Maker reference	AP8268237

AP8268237 - SCUDO ANT.V.GRIGIO GRAPHITE

	P2R reference	59953
	Maker reference	AP8268244

AP8268244 - SCUDO ANT.V.BIANCO APRILIA

	P2R reference	59534
	Maker reference	AP8258933

AP8258933 - TABLIER AV. PEINT ROUGE

	P2R reference	59437
	Maker reference	AP8258809

AP8258809 - TABLIER AVANT PEINT NOIR

	P2R reference	59457
	Maker reference	AP8258829

AP8258829 - TABLIER AV. PEINT ROUGE;

	P2R reference	59964
	Maker reference	AP8268257

AP8268257 - TABLIER AV. PEINT ROUGE

	P2R reference	60208
	Maker reference	AP8268723

AP8268723 - TABLIER AV. PEINT

	P2R reference	59339
	Maker reference	AP8258676

AP8258676 - TABLIER AVANT SUP. ARGENT

	P2R reference	139358
	Maker reference	AP82693725

AP82693725 - TABLIER AV.

	P2R reference	58617
	Maker reference	AP8248656

AP8248656 - TAB.INT.NOIR MET.;

	P2R reference	72143
	Maker reference	AP8201763

AP8201763 - CLIP POUR VIS TARAUD

	P2R reference	72157
	Maker reference	AP8202449

AP8202449 - CLIP X VITE AUTOFIL.D.4,2

	P2R reference	72135
	Maker reference	AP8201534

HELMET HOOK "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE SCOOTER/MAXISCOOTER APRILIA -AP8201534 -

	P2R reference	58618
	Maker reference	AP8248657

AP8248657 - COUV. DONNEES HOM., NOIR;

	P2R reference	71876
	Maker reference	AP8150413

SCREW - FOR FAIRINGS FASTENING (STAINLESS) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MOTORBIKE -AP8150413-

	P2R reference	71401
	Maker reference	AP8120531

NUT - WITH RUBBER INSERT "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO APRILIA ET MOTO-GUZZI -AP8120531-

	P2R reference	71174
	Maker reference	AP8102375

CLIP M5 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8102375

	P2R reference	66009
	Maker reference	254485

SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485-

	P2R reference	58838
	Maker reference	AP8249713

AP8249713 - PRISE D'AIR D, NOIR MET.;

	P2R reference	58839
	Maker reference	AP8249715

AP8249715 - PRISE D'AIR GCHE NOIR MET.;

	P2R reference	71957
	Maker reference	AP8152298

SCREW - FLANGE 5X16 "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTORBIKE APRILIA +MOTO-GUZZI -AP8152298-

	P2R reference	214483
	Maker reference	2B014101

2B014101 - INOX HEXAGON COCKET SCREWS M5X12

	P2R reference	71961
	Maker reference	AP8152302
	Replaced by référence 214483

SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE -AP8152302-

	P2R reference	56609
	Maker reference	AP8217034

AP8217034 - FERMETURE INF. FOURCHE;

	P2R reference	56895
	Maker reference	AP8220471

AP8220471 - RIVET EN PLASTIQUE;

	P2R reference	58083
	Maker reference	AP8234194

AP8234194 - SUPP. GRILLE DE RADIATEUR;

	P2R reference	71834
	Maker reference	AP8150179

AP8150179 - RONDELLE
