Vehicle Exploded View - APRILIA SR 50 H20 Ditech Carb 00-04
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

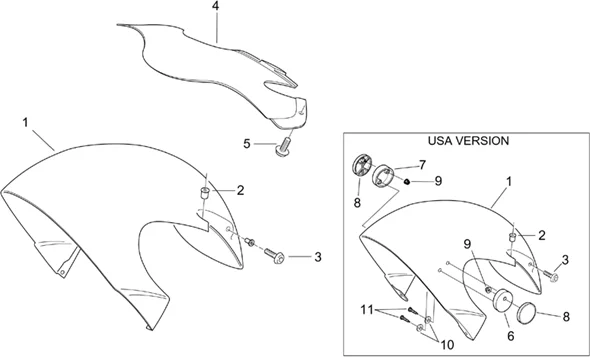

Chassis : 28.08 CARROSSERIE AV. IV
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/575/SR_50_H20_Ditech_Carb_00-04_28.08.PNG)
1 |
AP8226672 - GARDE-BOUE AV., ROUGE TRANS.; More informationQuantity required : 1 |
||||||
|
1 |
AP8226650 - GARDE-BOUE AV., HOT RED TRANS.; More informationQuantity required : 1 |
||||||
|
1 |
AP8226651 - GARDE-BOUE AV., E.BLEU TRANS.; More informationQuantity required : 1 |
||||||
|
1 |
AP8226671 - G.-B. AV.P.JAUNE; More informationQuantity required : 1 |
||||||
|
1 |
AP8226678 - GDE-BOUE AV JAUNE CITRON; More informationQuantity required : 1 |
||||||
|
1 |
AP8226689 - G-BOUE AV.V.R. F.; More informationQuantity required : 1 |
||||||
|
1 |
AP8226700 - GARDE-BOUE AV.P.H.R.; More informationQuantity required : 1 |
||||||
|
1 |
AP8226701 - GARD-B AV BLEU; More informationQuantity required : 1 |
||||||
|
1 |
AP8226727 - GARDE-BOUE AV NOIR; More informationQuantity required : 1 |
||||||
|
1 |
AP8226728 - GARDE-BOUE AV NOIR; More informationQuantity required : 1 |
||||||
|
1 |
AP8226733 - GARDE-BOUE AVANT PEINT GRIS; More informationQuantity required : 1 |
||||||
|
1 |
Garde-boue avant peint gris; |
||||||
|
1 |
AP8226748 - GARDE-BOUE AV NOIR; More informationQuantity required : 1 |
||||||
|
1 |
AP8226760 - PARAFANGO ANT.FOR.V.NERO D. More informationQuantity required : 1 |
||||||
|
1 |
AP8226768 - PARAFANGO ANT.FORATO V.BLU LIM More informationQuantity required : 1 |
||||||
|
1 |
AP8226771 - PARAFANGO ANT.FOR.V.ROSSO T. More informationQuantity required : 1 |
||||||
|
1 |
AP8226827 - PARAFANGO ANT.V.NERO DIABLO More informationQuantity required : 1 |
||||||
|
1 |
Garde-boue AV noir |
||||||
|
1 |
AP8226835 - PARAFANGO ANT.V.BIANCO APR. More informationQuantity required : 1 |
||||||
|
1 |
AP8226836 - PARAFANGO ANT.FOR.V.BIANCO AP. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/0/1/img/71401.jpg)
2 |
NUT - WITH RUBBER INSERT "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO APRILIA ET MOTO-GUZZI -AP8120531 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/7/3/img/71973.jpg)
3 |
SCREW - (5X9) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTORBIKE -AP8152339 More informationQuantity required : 2 |
||||||
|
4 |
AP8258036 - COUVERCLE INF. TABLIER, NOIR; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/3/img/71933.jpg)
5 |
SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE APRILIA -AP8152246 More informationQuantity required : 3 |
||||||
|
6 |
AP8249105 - SUPPORT CATAD.AV.G.; More informationQuantity required : 1 |
||||||
|
7 |
AP8249104 - SUPPORT CATAD.AV.D.; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/3/2/4/img/72324.jpg)
8 |
AP8224163 - CATADIOPTRE, AMBRE; More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/3/img/71963.jpg)
9 |
AP8152306 - ECROU AUTOBLOQU. More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/4/img/71804.jpg)
10 |
AP8150011 - RONDELLE More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/7/img/71887.jpg)
11 |
AP8150444 - VIS TARAUD POUR PLAST. INOX More informationQuantity required : 4 |
