Vehicle Exploded View - APRILIA SR 150 1999-2001
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

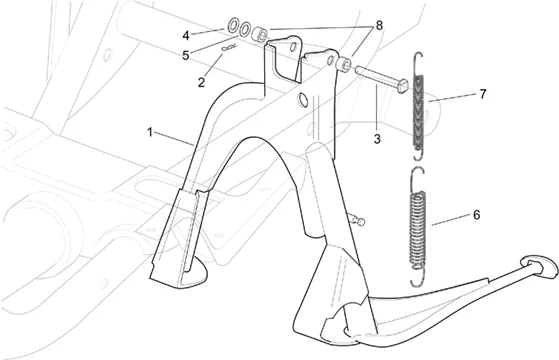

Chassis : 28.02 BÉQUILLE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/618/SR_150_1999-2001_28.02.PNG)
2 |
AP8201431 - GOUPILLE More informationQuantity required : 1 |
||||||
|
3 |
AP8221162 - AXE BEQ*8221296 (PL) More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/1/img/71811.jpg)
4 |
AP8150020 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/8/2/img/71482.jpg)
5 |
AP8121697 - RESSORT A GODET More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/3/0/3/img/72303.jpg)
6 |
SPRING - FOR CENTRAL STAND"PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 125 APRILIA/MOTO-GUZZI NORGE, BREVA, STELVIO -AP8221204- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/3/0/4/img/72304.jpg)
7 |
AP8221211 - RESS.RETOUR BEQ.INT. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/8/6/5/img/56865.jpg)
8 |
AP8220366 - CAOUTCHOUC More informationQuantity required : 2 |
