Vehicle Exploded View - APRILIA SR 125 1999-2001
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

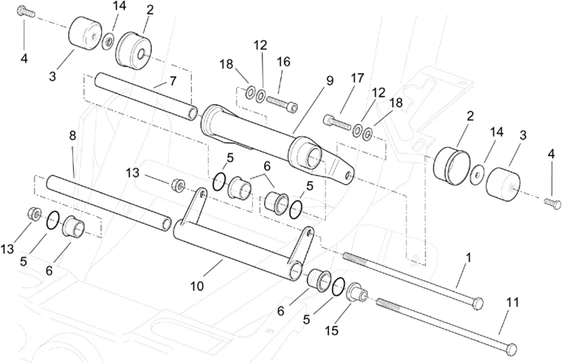

Chassis : 28.05 BIELLETTE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/579/SR_125_1999-2001_28.05.PNG)
2 |
AP8121931 - PROT.FIN COURSE BIELL.; More informationQuantity required : 2 |
||||||
|
3 |
AP8144238 - SILENTBLOC BIELLE More informationQuantity required : 2 |
||||||
|
4 |
AP8150482 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/5/9/8/img/46598.jpg)
5 |
AP8120280 - JOINT TORIQUE More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/8/0/8/img/46808.jpg)
6 |
AP8121404 - DOUILLE BIELLETTE More informationQuantity required : 4 |
||||||
|
7 |
AP8121396 - ENTRETOISE BIELLE; More informationQuantity required : 1 |
||||||
|
8 |
AP8121328 - ENTRETOISE BIELLE; More informationQuantity required : 1 |
||||||
|
9 |
AP8146209 - BIELLETTE FIXATION MOTEUR; More informationQuantity required : 1 |
||||||
|
10 |
AP8146210 - BIELLETTE FIXATION CHASSIS; More informationQuantity required : 1 |
||||||
|
11 |
AP8161033 - VITE TE 10X280 8.8 FIL.25 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/4/0/img/71840.jpg)
12 |
AP8150210 - RONDELLE ELASTIQUE COURBE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/0/img/71960.jpg)
13 |
AP8152301 - ECROU AUTOBLOQU. More informationQuantity required : 2 |
||||||
|
14 |
AP8121214 - "DOUILLE EN ""T""" More informationQuantity required : 2 |
||||||
|
15 |
AP8121417 - DOUILLE DE REGLAGE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/8/img/71818.jpg)
16 |
AP8150049 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/6/0/img/71860.JPG)
17 |
AP8150329 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/7/0/9/2/img/97092.jpg)
18 |
AP8152176 - RONDELLE More informationQuantity required : 2 |
