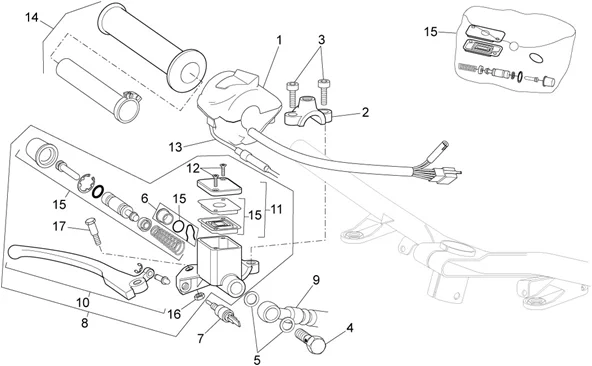

Tavole : 21 COMMANDES DTE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/284/Sport_City_Street_125_4T_4V_E3_2012_21.PNG)
1 |
AP8127592 - DEVIOLUCI DX More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/2/5/img/72225.JPG)
2 |
AP8213581 - CAVALLOTTO DX More informationQuantity required : 1 |
||||||
|
2 |
AP8590034 - CAVALLOTTO DX More informationQuantity required : 1 |
||||||
|
3 |
AP8213299 - VIS CALOTTE More informationQuantity required : 1 |
||||||
|
3 |
AP8213582 - VITE CAPPELLOTTO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/2/img/71282.jpg)
4 |
AP8113003 - VIS TUYAU HUILE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/3/img/71283.jpg)
5 |
AP8113004 - RONDELLE More informationQuantity required : 1 |
||||||
|
6 |
AP8213455 - HUBLOT POMPE FREIN More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/9/5/8/img/67958.jpg)
7 |
STOP LAMP SWITCH "PIAGGIO GENUINE PART" 125-500 MP3, X10, X-EVO, BEVERLY, GAMME VESPA/GILERA 125-300-500 NEXUS/APRILIA 750-900 SHIVER, DORSODURO, 125-500 SCARABEO -642032- More informationQuantity required : 1 |
||||||
|
8 |
AP8213547 - POMPA FRENO ANT. More informationQuantity required : 1 |
||||||
|
8 |
AP8213558 - POMPA FRENO ANT.DX More informationQuantity required : 1 |
||||||
|
9 |
AP8133673 - TUBO FRENO ANTERIORE More informationQuantity required : 1 |
||||||
|
10 |
AP8590035 - LEVA CPL. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/3/5/img/72235.jpg)
10 |
RIGHT BRAKE LEVER - HENG-TONG "PIAGGIO GENUINE PART" APRILIA 125 SPORT-CITY 2006>2012, 50 SR H2O 2004>2009 -AP8213602- More informationQuantity required : 1 |
||||||
|
11 |
AP8213598 - COPERCHIO SERBATOIO More informationQuantity required : 1 |
||||||
|
11 |
AP8590038 - COPERCHIO SERBATOIO CPL. More informationQuantity required : 1 |
||||||
|
12 |
AP8213400 - VIS COUVERCLE POMPE More informationQuantity required : 2 |
||||||
|
12 |
AP8213583 - VITE COPERCHIO POMPA More informationQuantity required : 2 |
||||||
|
13 |
AP8114500 - CAVO ACCELERATORE More informationQuantity required : 1 |
||||||
|
14 |
AP8118681 - COMANDO GAS CON MANOPOLA More informationQuantity required : 1 |
||||||
|
15 |
AP8213593 - KIT REVISIONE POMPA More informationQuantity required : 1 |
||||||
|
15 |
AP8590037 - KIT REVISIONE POMPA More informationQuantity required : 1 |
||||||
|
16 |
AP8213298 - ECROU More informationQuantity required : 1 |
||||||
|
16 |
AP8213585 - DADO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/7/6/img/71576.jpg)
17 |
AP8125757 - VIS LEVIER More informationQuantity required : 1 |
||||||
|
17 |
AP8213584 - VITE FISSAGGIO LEVA More informationQuantity required : 1 |
