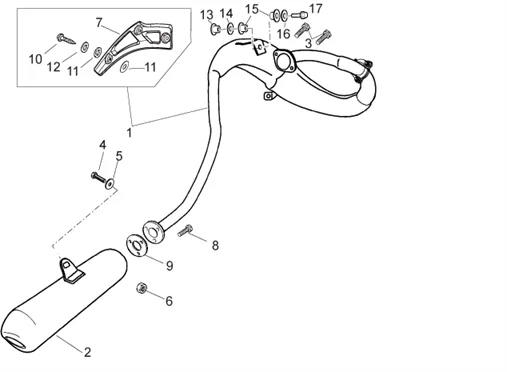

Vehicle Exploded View - GILERA SMT 50

	P2R reference	70332
	Maker reference	867398

867398 - TUYAU D#ECHAPPEMENT

	P2R reference	69918
	Maker reference	86176R

EXHAUST SILENCER "PIAGGIO GENUINE PART" 50 GILERA SMT, RCR 2011>2017 -86176R-

	P2R reference	71815
	Maker reference	AP8150044

SCREW - (6X20) "PIAGGIO GENUINE PART" COMMON TO THE RANGE -AP8150044-

	P2R reference	63657
	Maker reference	000060830005

00006083000 - VIS A TETE HEXAGON.AVEC BRIDE

	P2R reference	63892
	Maker reference	00D04900581

00D04900581 - DOUILLE SUPPLEMENTAIRE GOUJON

	P2R reference	63720
	Maker reference	000260080015

00026008001 - ECROU

	P2R reference	69826
	Maker reference	861020

EXHAUST HEAT PROTECTION "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -861020-

	P2R reference	63895
	Maker reference	00D05910081

00D05910081 - VIS

	P2R reference	64792
	Maker reference	00H03404321

EXHAUST GASKET- "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR -00H03404321-

	P2R reference	71957
	Maker reference	AP8152298

SCREW - FLANGE 5X16 "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTORBIKE APRILIA +MOTO-GUZZI -AP8152298-

	P2R reference	63922
	Maker reference	00F04201361

00F04201361 - RONDELLE

	P2R reference	64840
	Maker reference	00H03800722

00H03800722 - RONDELLE

	P2R reference	139429
	Maker reference	8674035

NUT - FOR EXHAUST FASTENING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -8674035

	P2R reference
	Maker reference	00000031120

ARAND.PLANA MECANIZ. D12 DIN125 ZnB

	P2R reference	72276
	Maker reference	AP8220241

RUBBER SPACER FOR EXHAUST "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, FUTURA, RX, SX -AP8220241

	P2R reference	63639
	Maker reference	000033065705

00003306570 - RONDELLE FIX BOITE A OUTILS

	P2R reference	63656
	Maker reference	000060820005

00006082000 - VIS
