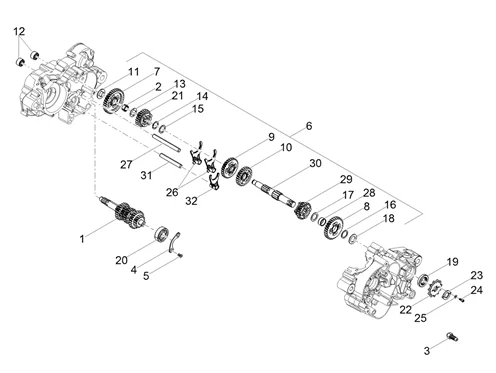

Vehicle Exploded View - GILERA SMT 50 e4 2018-2019 (EMEA)

	P2R reference	69417
	Maker reference	847027

GEARBOX SHAFT - PRIMARY "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2010>/APRILIA 50 SX, RX, RS 2010> -847027

	P2R reference	69526
	Maker reference	847544

ROLLER BEARING FOR GEARBOX SECONDARY SHAFT "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847544-

	P2R reference	146183
	Maker reference	1A006087

NEUTRAL SWITCH "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -1A006087

	P2R reference	69414
	Maker reference	847021

PLATE FOR GEARBOX BEARING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR -847021

	P2R reference	127169
	Maker reference	1A003116

SCREW - FOR GEARBOX "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -1A003116-

	P2R reference	69418
	Maker reference	847028

GEARBOX SHAFT (SECONDARY-COMPLETE) "PIAGGIO GENUINE PART" APRILIA 50 RS, RX, SX/GILERA 50 SMT, RCR - 847028

	P2R reference	69468
	Maker reference	847153

1ST WHEEL GEAR- "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847153

	P2R reference	69472
	Maker reference	847157

2 ND WHEEL GEAR- "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847157

	P2R reference	69470
	Maker reference	847155

3 RD WHEEL GEAR- "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847155

	P2R reference	69471
	Maker reference	847156

4 ST WHEEL GEAR- "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847156

	P2R reference	69531
	Maker reference	847549

SECONDARY SHAFT WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, SX, RX -847549-

	P2R reference	69485
	Maker reference	847211

ROLLER BEARING FOR GEARBOX SECONDARY SHAFT "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006>/APRILIA 50 SX, RX, RS 2006> -847211-

	P2R reference	146216
	Maker reference	871708

871708 - RONDELLE

	P2R reference	69525
	Maker reference	847542

SAFETY WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847542-

	P2R reference	69530
	Maker reference	847548

847548 - RONDELLE

	P2R reference	69524
	Maker reference	847541

847541 - RONDELLE

	P2R reference	69528
	Maker reference	847546

847546 - RONDELLE

	P2R reference	69527
	Maker reference	847545

SECONDARY SHAFT WASHER (1,2X17X28) "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50-125 RX, SX, RS, TUONO -847545-

	P2R reference	69412
	Maker reference	847019

GEARBOX OUTPUT SPROCKET O'RING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50-125 RX, SX, RS -847019

	P2R reference	69483
	Maker reference	847209

BEARING FOR GEARBOX PRIMARY SHAFT "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, RX, SX -847209-

	P2R reference	69469
	Maker reference	847154

5 TH WHEEL GEAR- "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847154

	P2R reference	69922
	Maker reference	86177R

GEARBOX OUPUT SPROCKET "PIAGGIO GENUINE PART" 50 A BOITE GILERA 50 SMT 2006>, RCR 2006>/APRILIA 50 RS 2006>, RS4 2011>, RX 2006>, SX 2006> 11 TEETH -86177R-

	P2R reference	64732
	Maker reference	00H02800421

STEERING LOCK WASHER FOR OUTPUT GEARBOX PINION "PIAGGIO GENUINE PART" GILERA RCR, SMT 2006>/APRILIA 50 RS4 2011>, RS, RX, SX 2006> -00H02800421

	P2R reference	151791
	Maker reference	2B002578

2B002578 - VIS

	P2R reference	71901
	Maker reference	AP8150535

AP8150535 - ROSETTA VENTAGLIO INT.A2 - M4

	P2R reference	68935
	Maker reference	83073R

GEARBOX FORK- 2ND GEAR "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006>/APRILIA 50 RX 2006>, SX 2006 -83073R

	P2R reference	69420
	Maker reference	847030

847030 - AXE FOURCHE 2ERE

	P2R reference	69529
	Maker reference	847547

847547 - BAGUE

	P2R reference	69473
	Maker reference	847158

6 TH WHEEL GEAR- "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847158

	P2R reference	69474
	Maker reference	847159

GEARBOX SHAFT - SECONDARY "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, SX, RX -847159

	P2R reference	69419
	Maker reference	847029

GEARBOX SHAFT FORK AXLE - FOR 1ST GEAR "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006>/APRILIA 50 RX 2006>, SX 2006 -847029-

	P2R reference	68934
	Maker reference	83072R

GEARBOX FORK- 1ST GEAR "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006>/APRILIA 50 RX 2006>, SX 2006 -83072R-
