Vehicle Exploded View - GILERA SMT 50 2013-2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

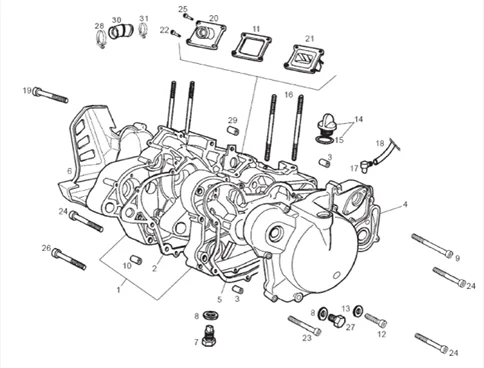

Moteur : 65.20 CARTERS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/146/SMT_50_2013-2015_65.20.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/2/6/4/img/73264.jpg)
1 |
COMPLETE CRANKCASE "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/DERBI SENDA 2006>, DRD 2006> (EURO 3 ENGINE) -CM1503065 - More informationQuantity required : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/6/6/8/img/72668.jpg)
2 |
GASKET FOR ENGINE CRANKCASE "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RX, SX -1A009969 - More informationQuantity required : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/5/0/8/img/69508.jpg)
3 |
CENTERING PIN FOR CRANKCASE "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, SX, RX -847241- More informationQuantity required : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/2/6/7/img/73267.jpg)
4 |
CLUTCH COVER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -CM1507034- More informationQuantity required : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/7/4/0/img/70740.jpg)
5 |
GASKET FOR CLUTCH HOUSING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006>/APRILIA 50 RS 2006>, RX 2006>, SX 2006 -880888- More informationQuantity required : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/7/5/1/img/64751.jpg)
6 |
CASING COVER (IGNITION SIDE) "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006> -00H03008241- More informationQuantity required : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/5/0/5/img/69505.jpg)
7 |
OIL DRAIN CAP "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847237- More informationQuantity required : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/5/0/6/img/69506.jpg)
8 |
O'RING GASKET FOR OIL DRAIN PLUG "PIAGGIO GENUINE PART" 350 BEVERLY, X10/GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847238- More informationQuantity required : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/5/3/3/img/70533.jpg)
9 |
SCREW - (M6X100X55) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTORBIKE APRILIA -874552- More informationQuantity required : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/1/5/img/69415.jpg)
10 |
CENTERING PIN FOR CRANKCASE "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847023- More informationQuantity required : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/6/1/img/69461.jpg)
11 |
REED VALVE GASKET "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847091- More informationQuantity required : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/3/8/img/66338.jpg)
12 |
SCREW - MULTI PURPOSE M6X10 "PIAGGIO GENUINE PART" -319446- More informationQuantity required : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/5/0/7/img/69507.jpg)
13 |
847239 - RONDELLE More informationQuantity required : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/5/9/img/69459.jpg)
14 |
OIL TANK CAP"PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847087- More informationQuantity required : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/7/9/img/69479.jpg)
15 |
O'RING GASKET "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO-GUZZI -847180- More informationQuantity required : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/6/5/0/img/70650.jpg)
16 |
CYLINDER STUD BOLT "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -8772649- More informationQuantity required : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/1/6/img/69416.jpg)
17 |
OIL BREATHER TUBE JOINT "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, SX, RX -847024- More informationQuantity required : 0 |
||||||
18 |
AP8220402 - TUYAU More informationQuantity required : 0 |
||||||
|
18 |
AP8220402 - TUYAU More informationQuantity required : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/4/img/71944.jpg)
19 |
SCREW - FLANGE "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8152281- More informationQuantity required : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/9/1/6/9/img/149169.JPG)
20 |
1A010664 - RACCORD D'ADMISSION More informationQuantity required : 0 |
||||||
|
20 |
1A010664 - RACCORD D'ADMISSION More informationQuantity required : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/9/1/1/7/img/149117.JPG)
21 |
1A003630 - SOUPAPE LAMELLES CPL More informationQuantity required : 0 |
||||||
|
21 |
1A003630 - SOUPAPE LAMELLES CPL More informationQuantity required : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/0/img/72720.jpg)
22 |
SCREW - M6X25 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -B016774- More informationQuantity required : 0 |
||||||
|
22 |
SCREW - M6X25 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -B016774- More informationQuantity required : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/6/7/img/66367.jpg)
23 |
SCREW - FOR CRANKCASE "PIAGGIO GENUINE PART" COMMON TO THE RANGE -414838- More informationQuantity required : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/7/1/6/img/151716.JPG)
24 |
1A011120 - VIS More informationQuantity required : 0 |
||||||
|
24 |
1A011120 - VIS More informationQuantity required : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/0/6/2/img/109062.JPG)
25 |
1A000352 - BOULON M6 X 22 More informationQuantity required : 0 |
||||||
|
25 |
1A000352 - BOULON M6 X 22 More informationQuantity required : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/7/4/6/img/64746.jpg)
26 |
SCREW - FOR CRANKCASE (6X50) "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, RX, SX -00H03000091- More informationQuantity required : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/0/4/7/5/8/img/204758.JPG)
27 |
1A021939 - VIS TêTE CYLINDRIQUE à SIX PANS CREUX More informationQuantity required : 0 |
||||||
|
27 |
1A021939 - VIS TêTE CYLINDRIQUE à SIX PANS CREUX More informationQuantity required : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/7/0/7/img/64707.jpg)
28 |
INTAKE MANIFOLD CLAMP "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00H02501491- More informationQuantity required : 0 |
||||||
|
29 |
CENTERING PIN FOR CRANKCASE "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847023- More informationQuantity required : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/3/5/2/img/70352.jpg)
30 |
JOINING SLEEVE- FROM INTAKE MANIFOLD TO CARB "PIAGGIO GENUINE PART" 50 A BOITE APRILIA 50 RS4 2011>/GILERA 50 SMT 2003>, RCR 2003> -871319- More informationQuantity required : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/6/3/img/69463.jpg)
31 |
INTAKE MANIFOLD CLAMP "PIAGGIO GENUINE PART" APRILIA 50 RS4 2011>/GILERA 50 SMT 2003>, RCR 2003> -847096- More informationQuantity required : 0 |
||||||
|
32 |
CM1513115 - MOTEUR 50 2T "H2O" SENDA KICK More informationQuantity required : 1 |
