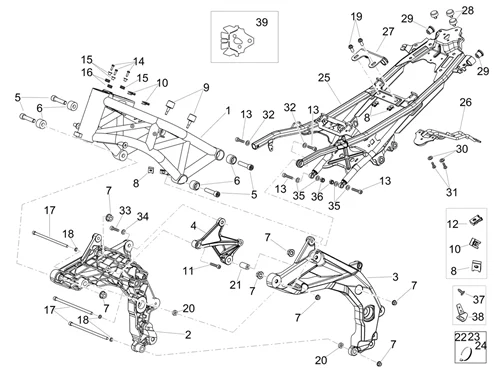

Vehicle Exploded View - APRILIA SHIVER 900 E4 ABS 2017 (EMEA-LATAM)

	P2R reference	42170
	Maker reference	89449300XR8

89449300XR8 - CHASSIS

	P2R reference	39122
	Maker reference	85153600XNB

RIGHT FLANK FRAME "PIAGGIO GENUINE PART" APRILIA 750-900 SHIVER 2010>2018, 750-900-1200 DORSODURO 2010>2018 NOIR -85153600XNB

	P2R reference	39125
	Maker reference	85153700XNB

85153700XNB - FLANC G, NOIR

	P2R reference	39127
	Maker reference	851541

851541 - SUPPORT

	P2R reference	39482
	Maker reference	852165

SCREW - FRONT FRAME FASTENING "PIAGGIO GENUINE PART" APRILIA 750-900 SHIVER, 750-900-1200 DORSODURO -852165

	P2R reference	39661
	Maker reference	853037

853037 - DOUILLE

	P2R reference	66103
	Maker reference	271740

NUT - FOR WHEEL AXLE "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -271740-

	P2R reference	67114
	Maker reference	575268

SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -575268-

	P2R reference	71739
	Maker reference	AP8144030

AP8144030 - TAMPON FIN DE COURSE BEQUILLE

	P2R reference	66009
	Maker reference	254485

SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485-

	P2R reference	71836
	Maker reference	AP8150195

AP8150195 - VIS

	P2R reference	71174
	Maker reference	AP8102375

CLIP M5 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8102375

	P2R reference	145567
	Maker reference	2B002216

2B002216 - VIS

	P2R reference	71815
	Maker reference	AP8150044

SCREW - (6X20) "PIAGGIO GENUINE PART" COMMON TO THE RANGE -AP8150044-

	P2R reference	72294
	Maker reference	AP8221023

AP8221023 - "DOUILLE EN ""T"" *"

	P2R reference	71384
	Maker reference	AP8120030

AP8120030 - CAOUTCHOUC

	P2R reference	39277
	Maker reference	851784

851784 - TIRANT PRISE MOTEUR;

	P2R reference	50837
	Maker reference	AP8150101

AP8150101 - WASHER

	P2R reference	71948
	Maker reference	AP8152286

SCREW - (8X20) "PIAGGIO GENUINE PART" COMMON TO THE RANGE -AP8152286

	P2R reference	39660
	Maker reference	853036

853036 - ENTRETOISE

	P2R reference	39659
	Maker reference	853035

853035 - ENTRETOISE

	P2R reference	71395
	Maker reference	AP8120422

AP8120422 - COLLIER, NOIR

	P2R reference	45158
	Maker reference	AP8102386

AP8102386 - FASCETTA IN NYLON NERA

	P2R reference	71411
	Maker reference	AP8120657

AP8120657 - COLLIER

	P2R reference	145753
	Maker reference	2B004100

2B004100 - ACCROCHE-SELLE

	P2R reference	39247
	Maker reference	851686

851686 - SUPPORT

	P2R reference	39279
	Maker reference	851789

851789 - SUPPORT

	P2R reference	72281
	Maker reference	AP8220349

AP8220349 - CAOUTCHOUC APPUI SELLE

	P2R reference	39550
	Maker reference	852433

852433 - JOINT

	P2R reference	71834
	Maker reference	AP8150179

AP8150179 - RONDELLE

	P2R reference	71914
	Maker reference	AP8152117

AP8152117 - VIS

	P2R reference	71870
	Maker reference	AP8150376

SPRING WASHER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8150376-

	P2R reference	71860
	Maker reference	AP8150329

AP8150329 - VIS

	P2R reference	97092
	Maker reference	AP8152176

AP8152176 - RONDELLE

	P2R reference	71809
	Maker reference	AP8150017

AP8150017 - RONDELLE

	P2R reference	66111
	Maker reference	272176

272176 - ECROU

	P2R reference	71876
	Maker reference	AP8150413

SCREW - FOR FAIRINGS FASTENING (STAINLESS) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MOTORBIKE -AP8150413-

	P2R reference	139219
	Maker reference	856668

856668 - PLAQUE

	P2R reference	40717
	Maker reference	859883

859883 - PROTECTION
