Vehicle Exploded View - APRILIA SHIVER 750 E3 ABS-NOABS 2010-2013 (APAC EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

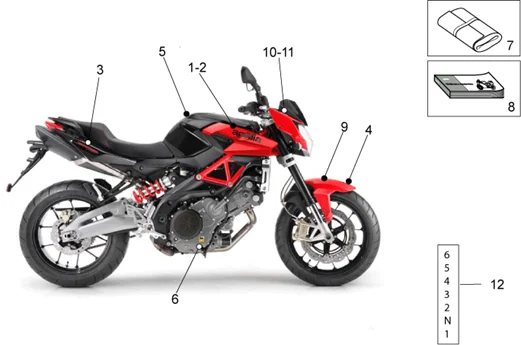

Cadre : 28.36 PLAQUETTES-DECAL.
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/861/Shiver_750_E3_ABS-NOABS_2010-2013_(APAC_EMEA)_28.36.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/2/8/7/9/img/42879.jpg)
1 |
DECO - ON RIGHT AIR DUCT "PIAGGIO GENUINE PART" APRILIA 750 SHIVER -898026- More informationQuantity required : 1 |
||||||
1 |
B044517 - DECALCO More informationQuantity required : 1 |
||||||
|
1 |
DECAL- RIGHT AIR DUCT "PIAGGIO GENUINE PART" APRILIA 750 SHIVER -B044522- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/2/5/6/9/img/42569.jpg)
1 |
DECAL- RIGHT AIR DUCT "PIAGGIO GENUINE PART" APRILIA 750 SHIVER -896669 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/2/3/0/2/img/62302.jpg)
2 |
DECAL- LEFT AIR DUCT "PIAGGIO GENUINE PART" APRILIA 750 SHIVER -B044523- More informationQuantity required : 1 |
||||||
|
2 |
DECO - ON LEFT AIR DUCT "PIAGGIO GENUINE PART" APRILIA 750 SHIVER -898027- More informationQuantity required : 1 |
||||||
|
2 |
B044518 - DECALCO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/2/5/7/0/img/42570.jpg)
2 |
896670 - PLAQUE More informationQuantity required : 1 |
||||||
|
3 |
898028 - DECALCO More informationQuantity required : 2 |
||||||
|
3 |
B044526 - DECALCO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/1/9/1/8/img/41918.jpg)
3 |
893096 - DECALCO More informationQuantity required : 2 |
||||||
|
4 |
898503 - DECALCO More informationQuantity required : 1 |
||||||
|
4 |
856097 - DECALCOMANIE More informationQuantity required : 1 |
||||||
|
4 |
B044521 - DECALCO More informationQuantity required : 1 |
||||||
|
5 |
896865 - DECALCO More informationQuantity required : 1 |
||||||
|
6 |
895839 - DECALCO More informationQuantity required : 2 |
||||||
|
7 |
851678 - TROUSSE A OUTILS More informationQuantity required : 1 |
||||||
|
8 |
|
||||||
|
8 |
|
||||||
|
8 |
|
||||||
|
9 |
893102 - DECALCO More informationQuantity required : 1 |
||||||
|
10 |
B044524 - DECALCO More informationQuantity required : 1 |
||||||
|
10 |
B044519 - DECALCO More informationQuantity required : 1 |
||||||
|
11 |
B044525 - DECALCO More informationQuantity required : 1 |
||||||
|
11 |
B044520 - DECALCO More informationQuantity required : 1 |
||||||
|
12 |
AP8277381 - DECALCO MARCE GIAPPONE More informationQuantity required : 1 |
