Vehicle Exploded View - APRILIA SHIVER 750 2007-2009
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

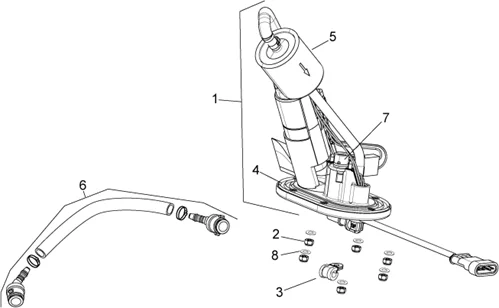

Chassis : 28.13 POMPE ESSENCE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/741/Shiver_750_2007-2009_28.13.PNG)
1 |
854638 - POMPE ESSENCE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/9/img/71889.jpg)
2 |
NUT - "PIAGGIO GENUINE PART" COMMON TO THE RANGE APRILIA/MOTO/GUZZI -AP8150451 More informationQuantity required : 6 |
||||||
|
3 |
AP8134167 - PLAQUETTE TUYAU FREIN; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/0/8/img/73408.jpg)
4 |
FUEL PUMP GASKET "PIAGGIO GENUINE PART" APRILIA 750-1100-1200 DORSODURO, 750-900 SHIVER/MOTO-GUZZI 1400 CALIFORNIA, AUDACE, 750 BREVA, NEVADA, V11 -GU01107490 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/0/6/img/73406.jpg)
5 |
FUEL FILTER "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO APRILIA ET MOTO-GUZZI -GU01106090 More informationQuantity required : 1 |
||||||
|
6 |
875995 - TUYAU ESSENCE More informationQuantity required : 1 |
||||||
|
7 |
898468 - DETECTEUR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/3/img/71873.jpg)
8 |
AP8150382 - RONDELLE More informationQuantity required : 6 |
